SD101CW-HE3-18

In Stock: 3,903

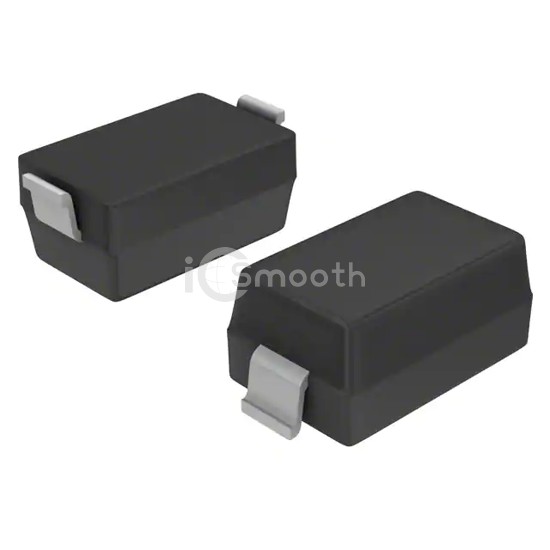

SD101CW-HE3-18 - Vishay General Semiconductor - Diodes Division - Diodes - Rectifiers - Single
REF: SD101CW-HE3-18 Vishay General Semiconductor - Diodes Division
SD101CW-HE3-18

Vishay General Semiconductor - Diodes Division

DIODE SCHOTTKY 400MW 40V SOD123

SD101CW-HE3-18 is a Diodes - Rectifiers - Single manufactured by Vishay General Semiconductor - Diodes Division. DIODE SCHOTTKY 400MW 40V SOD123. Key specifications: mounting type Surface Mount, package / case SOD-123.

Datasheet Request a Quote

In Stock: 3,903

Specifications

13 parameters
Product StatusActive
Diode TypeSchottky
Voltage - DC Reverse (Vr) (Max)40 V
Current - Average Rectified (Io)30mA (DC)
Voltage - Forward (Vf) (Max) @ If900 mV @ 15 mA
SpeedSmall Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr)1 ns
Current - Reverse Leakage @ Vr200 nA @ 30 V
Capacitance @ Vr, F2.2pF @ 0V, 1MHz
Mounting TypeSurface Mount
Package / CaseSOD-123
Supplier Device PackageSOD-123
Operating Temperature - Junction-55°C ~ 125°C
