SB5H90-E3/54

In Stock: 8,905

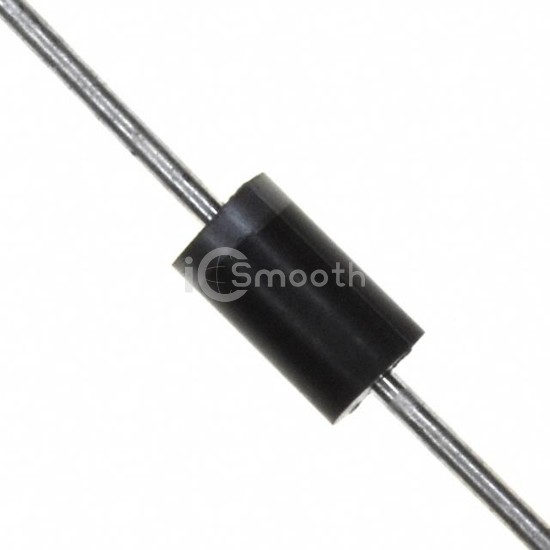

SB5H90-E3/54 - Vishay General Semiconductor - Diodes Division - Diodes - Rectifiers - Single
REF: SB5H90-E3/54 Vishay General Semiconductor - Diodes Division
SB5H90-E3/54

Vishay General Semiconductor - Diodes Division

DIODE SCHOTTKY 90V 5A DO201AD

SB5H90-E3/54 is a Diodes - Rectifiers - Single manufactured by Vishay General Semiconductor - Diodes Division. DIODE SCHOTTKY 90V 5A DO201AD. Key specifications: mounting type Through Hole, package / case DO-201AD, Axial.

Datasheet Request a Quote

In Stock: 8,905

Specifications

13 parameters
Product StatusActive
Diode TypeSchottky
Voltage - DC Reverse (Vr) (Max)90 V
Current - Average Rectified (Io)5A
Voltage - Forward (Vf) (Max) @ If800 mV @ 5 A
SpeedFast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)-
Current - Reverse Leakage @ Vr200 µA @ 90 V
Capacitance @ Vr, F-
Mounting TypeThrough Hole
Package / CaseDO-201AD, Axial
Supplier Device PackageDO-201AD
Operating Temperature - Junction175°C (Max)
