SB3H100-E3/54

In Stock: 24,371

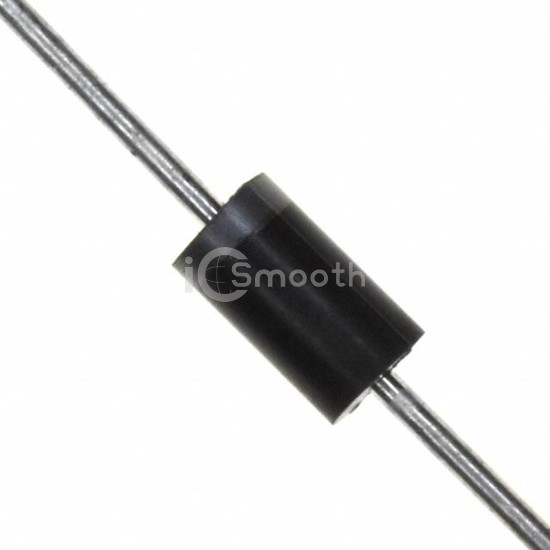

SB3H100-E3/54 - Vishay General Semiconductor - Diodes Division - Diodes - Rectifiers - Single
REF: SB3H100-E3/54 Vishay General Semiconductor - Diodes Division
SB3H100-E3/54

Vishay General Semiconductor - Diodes Division

DIODE SCHOTTKY 100V 3A DO201AD

SB3H100-E3/54 is a Diodes - Rectifiers - Single manufactured by Vishay General Semiconductor - Diodes Division. DIODE SCHOTTKY 100V 3A DO201AD. Key specifications: mounting type Through Hole, package / case DO-201AD, Axial.

Datasheet Request a Quote

In Stock: 24,371

Specifications

13 parameters
Product StatusActive
Diode TypeSchottky
Voltage - DC Reverse (Vr) (Max)100 V
Current - Average Rectified (Io)3A
Voltage - Forward (Vf) (Max) @ If800 mV @ 3 A
SpeedFast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)-
Current - Reverse Leakage @ Vr20 µA @ 100 V
Capacitance @ Vr, F-
Mounting TypeThrough Hole
Package / CaseDO-201AD, Axial
Supplier Device PackageDO-201AD
Operating Temperature - Junction175°C (Max)
