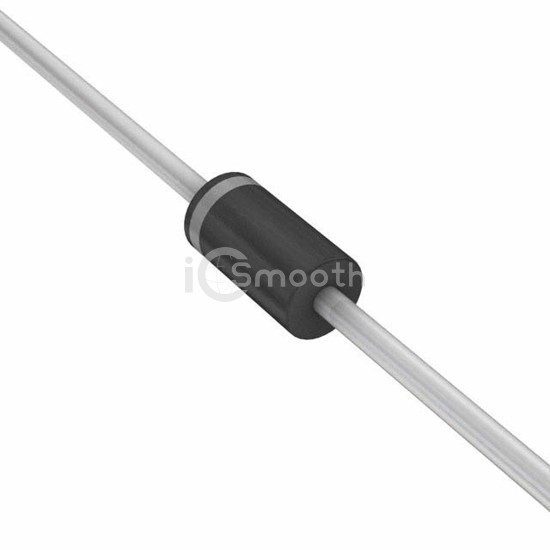

Name: SB15H45-E3/73
Brand: Vishay General Semiconductor - Diodes Division
SKU: SB15H45-E3/73
Availability: InStock

REF: SB15H45-E3/73 Vishay General Semiconductor - Diodes Division

SB15H45-E3/73

Vishay General Semiconductor - Diodes Division

DIODE SCHOTTKY 45V 7A DO204AL

SB15H45-E3/73 is a Diodes - Rectifiers - Single manufactured by Vishay General Semiconductor - Diodes Division. DIODE SCHOTTKY 45V 7A DO204AL. Key specifications: mounting type Through Hole, package / case DO-204AL, DO-41, Axial.

Datasheet Request a Quote

In Stock: 9,929

Specifications

13 parameters

Product Status	Obsolete
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Max)	45 V
Current - Average Rectified (Io)	7A
Voltage - Forward (Vf) (Max) @ If	480 mV @ 5 A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)	-

Current - Reverse Leakage @ Vr	300 µA @ 45 V
Capacitance @ Vr, F	1020pF @ 4V, 1MHz
Mounting Type	Through Hole
Package / Case	DO-204AL, DO-41, Axial
Supplier Device Package	DO-204AL (DO-41)
Operating Temperature - Junction	200°C (Max)
