SB15H45-7000E3/73

In Stock: 7,191

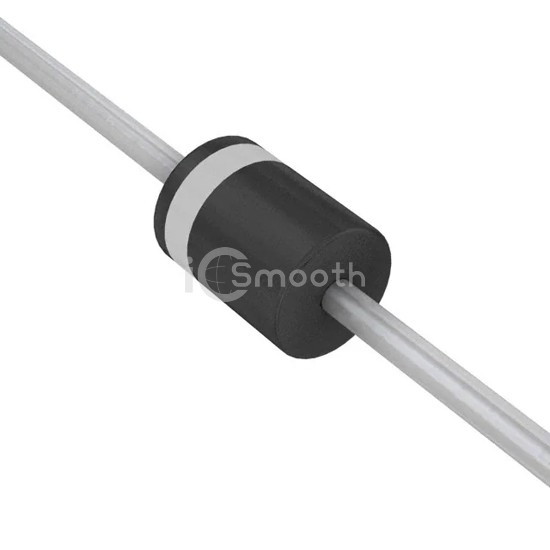

SB15H45-7000E3/73 - Vishay General Semiconductor - Diodes Division - Diodes - Rectifiers - Single
REF: SB15H45-7000E3/73 Vishay General Semiconductor - Diodes Division
SB15H45-7000E3/73

Vishay General Semiconductor - Diodes Division

DIODE SCHOTTKY

SB15H45-7000E3/73 is a Diodes - Rectifiers - Single manufactured by Vishay General Semiconductor - Diodes Division. DIODE SCHOTTKY. Key specifications: mounting type Through Hole, package / case P600, Axial.

Request a Quote

In Stock: 7,191

Specifications

13 parameters
Product StatusObsolete
Diode TypeSchottky
Voltage - DC Reverse (Vr) (Max)45 V
Current - Average Rectified (Io)7A
Voltage - Forward (Vf) (Max) @ If480 mV @ 5 A
SpeedFast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)-
Current - Reverse Leakage @ Vr300 µA @ 45 V
Capacitance @ Vr, F1020pF @ 4V, 1MHz
Mounting TypeThrough Hole
Package / CaseP600, Axial
Supplier Device PackageP600
Operating Temperature - Junction-55°C ~ 175°C
