Name: SA22AHE3/54
Brand: Vishay General Semiconductor - Diodes Division
SKU: SA22AHE3/54
Price: 0.23 USD
Availability: InStock

REF: SA22AHE3/54 Vishay General Semiconductor - Diodes Division

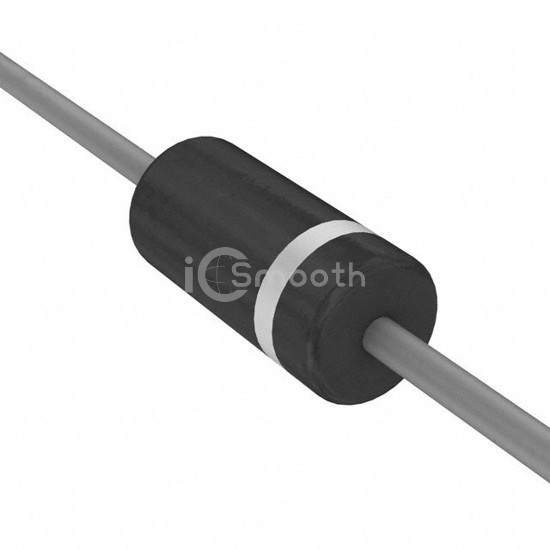

SA22AHE3/54

Vishay General Semiconductor - Diodes Division

TVS DIODE 22VWM 35.5VC DO204AC

SA22AHE3/54 is a TVS - Diodes manufactured by Vishay General Semiconductor - Diodes Division. TVS DIODE 22VWM 35.5VC DO204AC. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case DO-204AC, DO-15, Axial.

Datasheet Request a Quote

In Stock: 6,016

Tiered Pricing USD

4,000+ $0.2266 —

8,000+ $0.2093 -8%

12,000+ $0.2005 -12%

20,000+ $0.1906 -16%

28,000+ $0.1900 -16% BEST

Specifications

16 parameters

Product Status	Active
Type	Zener
Unidirectional Channels	1
Bidirectional Channels	-
Voltage - Reverse Standoff (Typ)	22V
Voltage - Breakdown (Min)	24.4V
Voltage - Clamping (Max) @ Ipp	35.5V
Current - Peak Pulse (10/1000µs)	14.1A

Power - Peak Pulse	500W
Power Line Protection	No
Applications	Automotive
Capacitance @ Frequency	-
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Through Hole
Package / Case	DO-204AC, DO-15, Axial
Supplier Device Package	DO-204AC (DO-15)
