RS1PDHM3_A/H

In Stock: 2,410

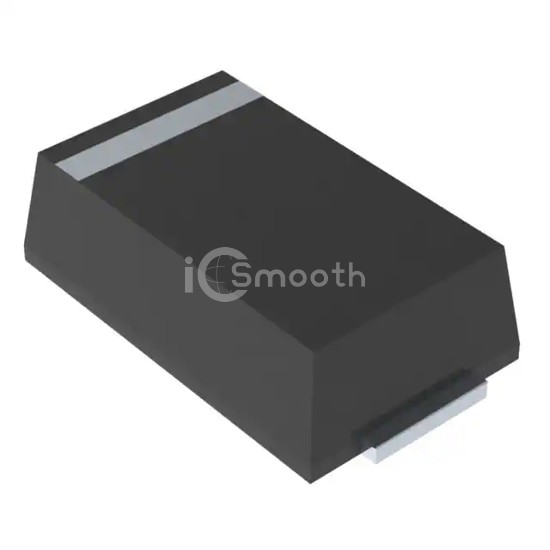

RS1PDHM3_A/H - Vishay General Semiconductor - Diodes Division - Diodes - Rectifiers - Single
REF: RS1PDHM3_A/H Vishay General Semiconductor - Diodes Division
RS1PDHM3_A/H

Vishay General Semiconductor - Diodes Division

DIODE 100V 1A DO-220AA

RS1PDHM3_A/H is a Diodes - Rectifiers - Single manufactured by Vishay General Semiconductor - Diodes Division. DIODE 100V 1A DO-220AA. Key specifications: mounting type Surface Mount, package / case DO-220AA.

Datasheet Request a Quote

In Stock: 2,410

Specifications

13 parameters
Product StatusActive
Diode TypeStandard
Voltage - DC Reverse (Vr) (Max)200 V
Current - Average Rectified (Io)1A
Voltage - Forward (Vf) (Max) @ If1.3 V @ 1 A
SpeedFast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)150 ns
Current - Reverse Leakage @ Vr1 µA @ 200 V
Capacitance @ Vr, F9pF @ 4V, 1MHz
Mounting TypeSurface Mount
Package / CaseDO-220AA
Supplier Device PackageDO-220AA (SMP)
Operating Temperature - Junction-55°C ~ 150°C
