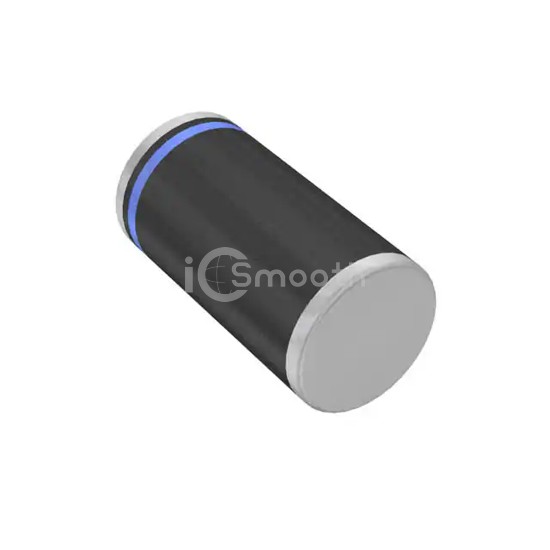

Name: RGL41B/1
Brand: Vishay General Semiconductor - Diodes Division
SKU: RGL41B/1
Availability: InStock

REF: RGL41B/1 Vishay General Semiconductor - Diodes Division

RGL41B/1

Vishay General Semiconductor - Diodes Division

DIODE GEN PURP 100V 1A DO213AB

RGL41B/1 is a Diodes - Rectifiers - Single manufactured by Vishay General Semiconductor - Diodes Division. DIODE GEN PURP 100V 1A DO213AB. Key specifications: mounting type Surface Mount, package / case DO-213AB, MELF (Glass).

Datasheet Request a Quote

In Stock: 8,134

Specifications

13 parameters

Product Status	Active
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	100 V
Current - Average Rectified (Io)	1A
Voltage - Forward (Vf) (Max) @ If	1.3 V @ 1 A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)	150 ns

Current - Reverse Leakage @ Vr	5 µA @ 100 V
Capacitance @ Vr, F	15pF @ 4V, 1MHz
Mounting Type	Surface Mount
Package / Case	DO-213AB, MELF (Glass)
Supplier Device Package	DO-213AB
Operating Temperature - Junction	-65°C ~ 175°C
