LS103B-GS18

In Stock: 7,059

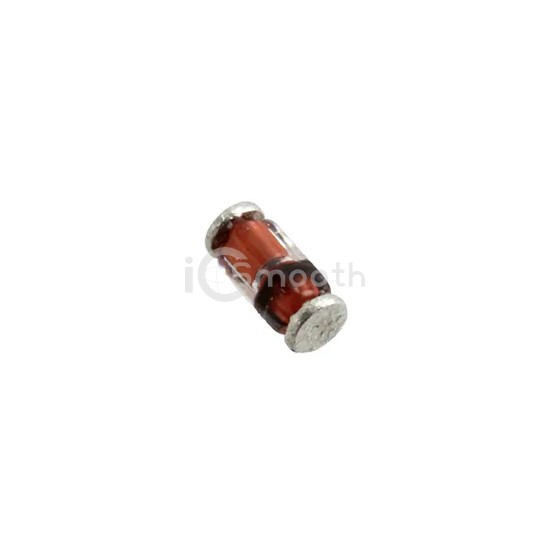

LS103B-GS18 - Vishay General Semiconductor - Diodes Division - Diodes - Rectifiers - Single
REF: LS103B-GS18 Vishay General Semiconductor - Diodes Division
LS103B-GS18

Vishay General Semiconductor - Diodes Division

DIODE SCHOTTKY 30V 15A SOD80

LS103B-GS18 is a Diodes - Rectifiers - Single manufactured by Vishay General Semiconductor - Diodes Division. DIODE SCHOTTKY 30V 15A SOD80. Key specifications: mounting type Surface Mount, package / case SOD-80 Variant.

Datasheet Request a Quote

In Stock: 7,059

Specifications

13 parameters
Product StatusActive
Diode TypeSchottky
Voltage - DC Reverse (Vr) (Max)30 V
Current - Average Rectified (Io)-
Voltage - Forward (Vf) (Max) @ If600 mV @ 200 mA
SpeedFast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)10 ns
Current - Reverse Leakage @ Vr5 µA @ 20 V
Capacitance @ Vr, F50pF @ 0V, 1MHz
Mounting TypeSurface Mount
Package / CaseSOD-80 Variant
Supplier Device PackageSOD-80 QuadroMELF
Operating Temperature - Junction125°C (Max)
