LL103B-GS08

In Stock: 4,843

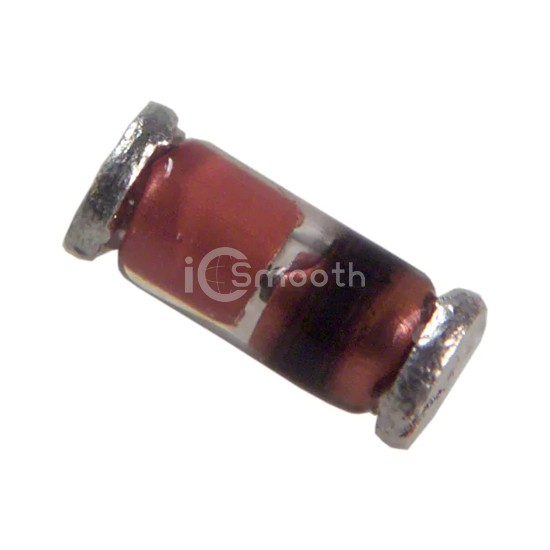

LL103B-GS08 - Vishay General Semiconductor - Diodes Division - Diodes - Rectifiers - Single
REF: LL103B-GS08 Vishay General Semiconductor - Diodes Division
LL103B-GS08

Vishay General Semiconductor - Diodes Division

DIODE SCHOTTKY 30V 200MA MINMELF

LL103B-GS08 is a Diodes - Rectifiers - Single manufactured by Vishay General Semiconductor - Diodes Division. DIODE SCHOTTKY 30V 200MA MINMELF. Key specifications: mounting type Surface Mount, package / case DO-213AC, MINI-MELF, SOD-80.

Datasheet Request a Quote

In Stock: 4,843

Specifications

13 parameters
Product StatusActive
Diode TypeSchottky
Voltage - DC Reverse (Vr) (Max)30 V
Current - Average Rectified (Io)200mA
Voltage - Forward (Vf) (Max) @ If600 mV @ 200 mA
SpeedSmall Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr)10 ns
Current - Reverse Leakage @ Vr5 µA @ 20 V
Capacitance @ Vr, F50pF @ 0V, 1MHz
Mounting TypeSurface Mount
Package / CaseDO-213AC, MINI-MELF, SOD-80
Supplier Device PackageSOD-80 MiniMELF
Operating Temperature - Junction125°C (Max)
