LL103A-13

In Stock: 6,704

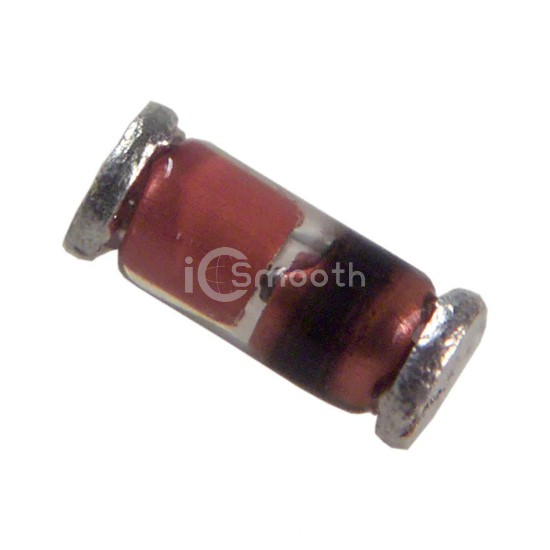

LL103A-13 - Vishay General Semiconductor - Diodes Division - Diodes - Rectifiers - Single
REF: LL103A-13 Vishay General Semiconductor - Diodes Division
LL103A-13

Vishay General Semiconductor - Diodes Division

DIODE SCHOTTKY 40V 200MA SOD80

LL103A-13 is a Diodes - Rectifiers - Single manufactured by Vishay General Semiconductor - Diodes Division. DIODE SCHOTTKY 40V 200MA SOD80. Key specifications: mounting type Surface Mount, package / case DO-213AC, MINI-MELF, SOD-80.

Request a Quote

In Stock: 6,704

Specifications

13 parameters
Product StatusObsolete
Diode TypeSchottky
Voltage - DC Reverse (Vr) (Max)40 V
Current - Average Rectified (Io)200mA (DC)
Voltage - Forward (Vf) (Max) @ If600 mV @ 200 mA
SpeedSmall Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr)10 ns
Current - Reverse Leakage @ Vr5 µA @ 30 V
Capacitance @ Vr, F50pF @ 0V, 1MHz
Mounting TypeSurface Mount
Package / CaseDO-213AC, MINI-MELF, SOD-80
Supplier Device PackageSOD-80 MiniMELF
Operating Temperature - Junction125°C (Max)
