HFA80NC40CSL

In Stock: 7,799

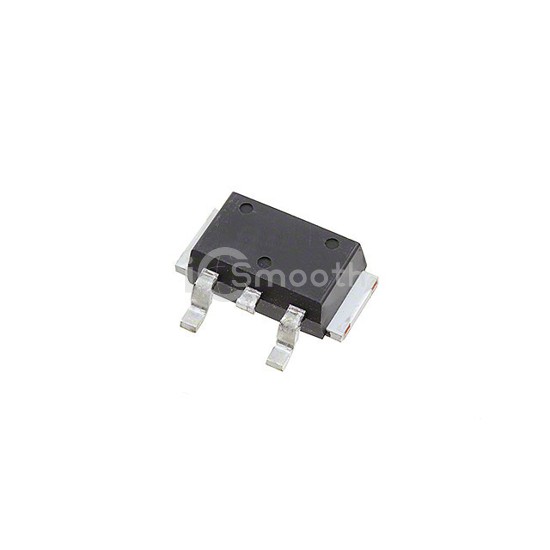

HFA80NC40CSL - Vishay General Semiconductor - Diodes Division - Diodes - Rectifiers - Arrays
REF: HFA80NC40CSL Vishay General Semiconductor - Diodes Division
HFA80NC40CSL

Vishay General Semiconductor - Diodes Division

DIODE ARRAY GP 400V 85A D618SL

HFA80NC40CSL is a Diodes - Rectifiers - Arrays manufactured by Vishay General Semiconductor - Diodes Division. DIODE ARRAY GP 400V 85A D618SL. Key specifications: mounting type Surface Mount, package / case D-61-8-SL.

Datasheet Request a Quote

In Stock: 7,799

Specifications

13 parameters
Product StatusObsolete
Diode Configuration1 Pair Common Cathode
Diode TypeStandard
Voltage - DC Reverse (Vr) (Max)400 V
Current - Average Rectified (Io) (per Diode)85A (DC)
Voltage - Forward (Vf) (Max) @ If1.5 V @ 80 A
SpeedFast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)100 ns
Current - Reverse Leakage @ Vr3 µA @ 400 V
Operating Temperature - Junction-55°C ~ 150°C
Mounting TypeSurface Mount
Package / CaseD-61-8-SL
Supplier Device PackageD-61-8-SL
