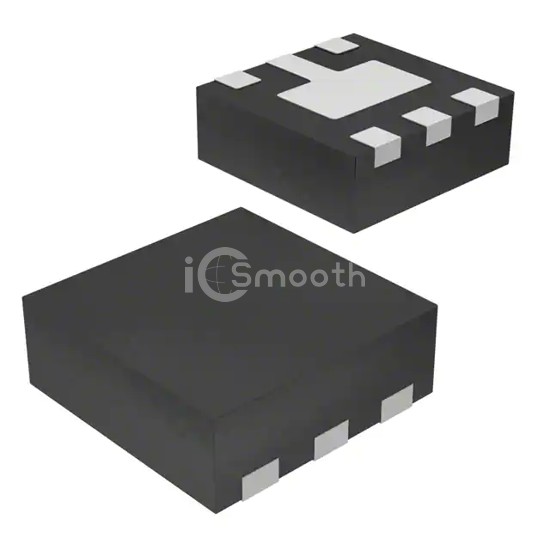

Name: GMF05C-HSF-GS08
Brand: Vishay General Semiconductor - Diodes Division
SKU: GMF05C-HSF-GS08
Price: 0.33 USD
Availability: InStock

REF: GMF05C-HSF-GS08 Vishay General Semiconductor - Diodes Division

GMF05C-HSF-GS08

Vishay General Semiconductor - Diodes Division

TVS DIODE 5VWM 12.5VC LLP75-6L

GMF05C-HSF-GS08 is a TVS - Diodes manufactured by Vishay General Semiconductor - Diodes Division. TVS DIODE 5VWM 12.5VC LLP75-6L. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C (TJ), package / case 6-UFDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 5,059

Tiered Pricing USD

1+ $0.3300 —

10+ $0.2600 -21%

100+ $0.2260 -32%

500+ $0.2142 -35% BEST

Specifications

16 parameters

Product Status	Active
Type	Zener
Unidirectional Channels	5
Bidirectional Channels	-
Voltage - Reverse Standoff (Typ)	5V (Min)
Voltage - Breakdown (Min)	6V
Voltage - Clamping (Max) @ Ipp	12.5V
Current - Peak Pulse (10/1000µs)	12A (8/20µs)

Power - Peak Pulse	200W
Power Line Protection	No
Applications	General Purpose
Capacitance @ Frequency	126pF @ 1MHz
Operating Temperature	-55°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	6-UFDFN Exposed Pad
Supplier Device Package	LLP75-6L
