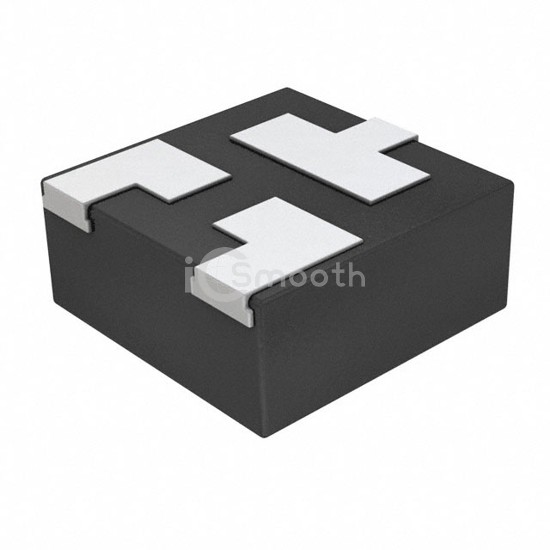

Name: GL15-HT3-GS08
Brand: Vishay General Semiconductor - Diodes Division
SKU: GL15-HT3-GS08
Availability: InStock

REF: GL15-HT3-GS08 Vishay General Semiconductor - Diodes Division

GL15-HT3-GS08

Vishay General Semiconductor - Diodes Division

TVS DIODE 15VWM 33VC LLP75-3B

GL15-HT3-GS08 is a TVS - Diodes manufactured by Vishay General Semiconductor - Diodes Division. TVS DIODE 15VWM 33VC LLP75-3B. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C (TJ), package / case 3-WDFN.

Datasheet Request a Quote

In Stock: 9,677

Specifications

16 parameters

Product Status	Obsolete
Type	Zener
Unidirectional Channels	1
Bidirectional Channels	-
Voltage - Reverse Standoff (Typ)	15V
Voltage - Breakdown (Min)	16.7V
Voltage - Clamping (Max) @ Ipp	33V
Current - Peak Pulse (10/1000µs)	10A (8/20µs)

Power - Peak Pulse	300W
Power Line Protection	No
Applications	General Purpose
Capacitance @ Frequency	5pF @ 1MHz
Operating Temperature	-55°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	3-WDFN
Supplier Device Package	LLP75-3B
