Name: GA400TD25S
Brand: Vishay General Semiconductor - Diodes Division
SKU: GA400TD25S
Availability: InStock

REF: GA400TD25S Vishay General Semiconductor - Diodes Division

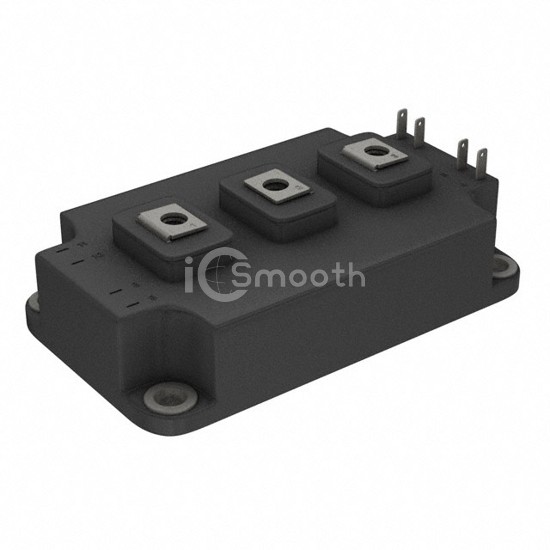

GA400TD25S

Vishay General Semiconductor - Diodes Division

IGBT MOD 250V 400A INT-A-PAK

GA400TD25S is a Transistors - IGBTs - Modules manufactured by Vishay General Semiconductor - Diodes Division. IGBT MOD 250V 400A INT-A-PAK. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 150°C (TJ), package / case Dual INT-A-PAK (3 + 8), current - collector (ic) (max) 400 A.

Datasheet Request a Quote

In Stock: 3,254

Specifications

15 parameters

Product Status	Obsolete
IGBT Type	-
Configuration	Half Bridge
Voltage - Collector Emitter Breakdown (Max)	250 V
Current - Collector (Ic) (Max)	400 A
Power - Max	1350 W
Vce(on) (Max) @ Vge, Ic	1.6V @ 15V, 400A
Current - Collector Cutoff (Max)	500 µA

Input Capacitance (Cies) @ Vce	36 nF @ 30 V
Input	Standard
NTC Thermistor	No
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Chassis Mount
Package / Case	Dual INT-A-PAK (3 + 8)
Supplier Device Package	Dual INT-A-PAK
