ESH1PDHE3/84A

In Stock: 3,091

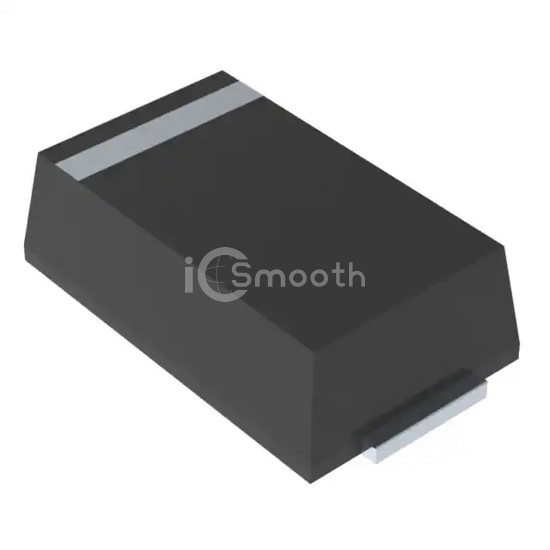

ESH1PDHE3/84A - Vishay General Semiconductor - Diodes Division - Diodes - Rectifiers - Single
REF: ESH1PDHE3/84A Vishay General Semiconductor - Diodes Division
ESH1PDHE3/84A

Vishay General Semiconductor - Diodes Division

DIODE GEN PURP 200V 1A DO220AA

ESH1PDHE3/84A is a Diodes - Rectifiers - Single manufactured by Vishay General Semiconductor - Diodes Division. DIODE GEN PURP 200V 1A DO220AA. Key specifications: mounting type Surface Mount, package / case DO-220AA.

Datasheet Request a Quote

In Stock: 3,091

Specifications

13 parameters
Product StatusObsolete
Diode TypeStandard
Voltage - DC Reverse (Vr) (Max)200 V
Current - Average Rectified (Io)1A
Voltage - Forward (Vf) (Max) @ If900 mV @ 1 A
SpeedFast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)25 ns
Current - Reverse Leakage @ Vr1 µA @ 200 V
Capacitance @ Vr, F25pF @ 4V, 1MHz
Mounting TypeSurface Mount
Package / CaseDO-220AA
Supplier Device PackageDO-220AA (SMP)
Operating Temperature - Junction-55°C ~ 175°C
