ES1PAHE3/84A

In Stock: 8,352

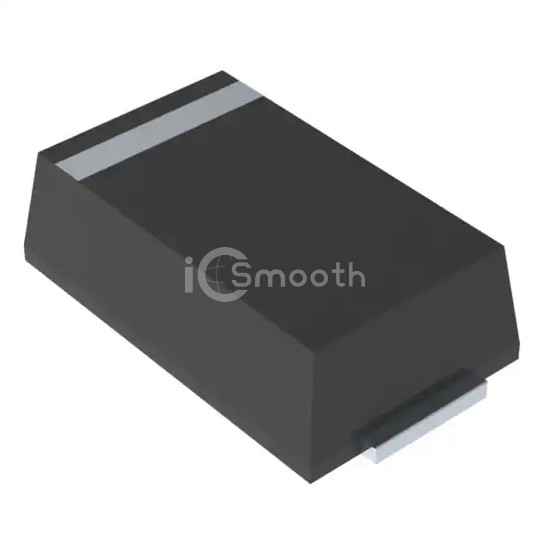

ES1PAHE3/84A - Vishay General Semiconductor - Diodes Division - Diodes - Rectifiers - Single
REF: ES1PAHE3/84A Vishay General Semiconductor - Diodes Division
ES1PAHE3/84A

Vishay General Semiconductor - Diodes Division

DIODE GEN PURP 50V 1A DO220AA

ES1PAHE3/84A is a Diodes - Rectifiers - Single manufactured by Vishay General Semiconductor - Diodes Division. DIODE GEN PURP 50V 1A DO220AA. Key specifications: mounting type Surface Mount, package / case DO-220AA.

Request a Quote

In Stock: 8,352

Specifications

13 parameters
Product StatusObsolete
Diode TypeStandard
Voltage - DC Reverse (Vr) (Max)50 V
Current - Average Rectified (Io)1A
Voltage - Forward (Vf) (Max) @ If920 mV @ 1 A
SpeedFast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)25 ns
Current - Reverse Leakage @ Vr5 µA @ 50 V
Capacitance @ Vr, F10pF @ 4V, 1MHz
Mounting TypeSurface Mount
Package / CaseDO-220AA
Supplier Device PackageDO-220AA (SMP)
Operating Temperature - Junction-55°C ~ 150°C
