Name: EGL34G/51
Brand: Vishay General Semiconductor - Diodes Division
SKU: EGL34G/51
Availability: InStock

REF: EGL34G/51 Vishay General Semiconductor - Diodes Division

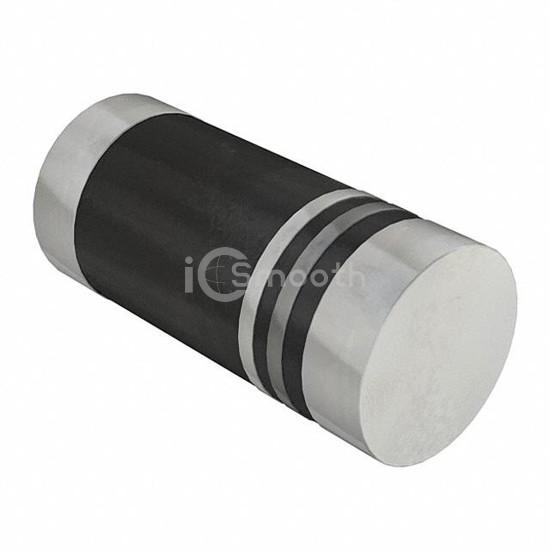

EGL34G/51

Vishay General Semiconductor - Diodes Division

DIODE GEN PURP 400V 500MA DO213

EGL34G/51 is a Diodes - Rectifiers - Single manufactured by Vishay General Semiconductor - Diodes Division. DIODE GEN PURP 400V 500MA DO213. Key specifications: mounting type Surface Mount, package / case DO-213AA (Glass).

Datasheet Request a Quote

In Stock: 1,811

Specifications

13 parameters

Product Status	Active
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	400 V
Current - Average Rectified (Io)	500mA
Voltage - Forward (Vf) (Max) @ If	1.35 V @ 500 mA
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)	50 ns

Current - Reverse Leakage @ Vr	5 µA @ 400 V
Capacitance @ Vr, F	7pF @ 4V, 1MHz
Mounting Type	Surface Mount
Package / Case	DO-213AA (Glass)
Supplier Device Package	DO-213AA (GL34)
Operating Temperature - Junction	-65°C ~ 175°C
