Name: CPV364M4U
Brand: Vishay General Semiconductor - Diodes Division
SKU: CPV364M4U
Availability: InStock

REF: CPV364M4U Vishay General Semiconductor - Diodes Division

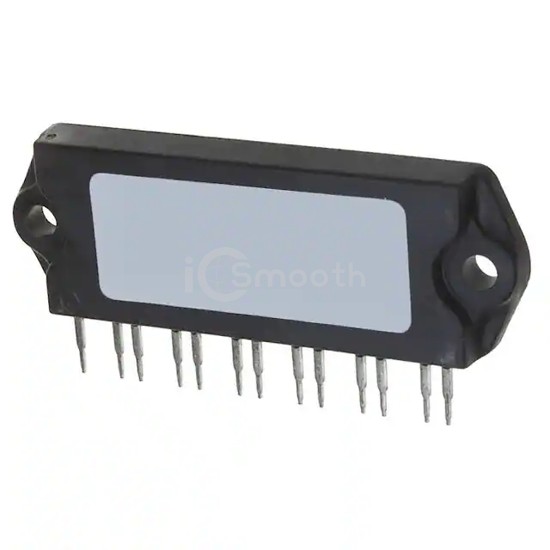

CPV364M4U

Vishay General Semiconductor - Diodes Division

IGBT MODULE 600V 20A 63W IMS-2

CPV364M4U is a Transistors - IGBTs - Modules manufactured by Vishay General Semiconductor - Diodes Division. IGBT MODULE 600V 20A 63W IMS-2. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 150°C (TJ), package / case 19-SIP (13 Leads), IMS-2, current - collector (ic) (max) 20 A.

Request a Quote

In Stock: 4,805

Specifications

15 parameters

Product Status	Active
IGBT Type	-
Configuration	Three Phase Inverter
Voltage - Collector Emitter Breakdown (Max)	600 V
Current - Collector (Ic) (Max)	20 A
Power - Max	63 W
Vce(on) (Max) @ Vge, Ic	1.84V @ 15V, 20A
Current - Collector Cutoff (Max)	250 µA

Input Capacitance (Cies) @ Vce	2.1 nF @ 30 V
Input	Standard
NTC Thermistor	No
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Through Hole
Package / Case	19-SIP (13 Leads), IMS-2
Supplier Device Package	IMS-2
