Name: BZW04-14-E3/54
Brand: Vishay General Semiconductor - Diodes Division
SKU: BZW04-14-E3/54
Price: 0.15 USD
Availability: InStock

REF: BZW04-14-E3/54 Vishay General Semiconductor - Diodes Division

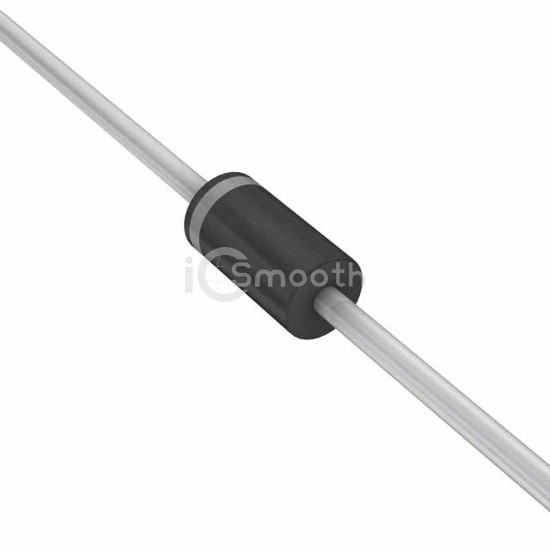

BZW04-14-E3/54

Vishay General Semiconductor - Diodes Division

TVS DIODE 13.6VWM 22.5VC DO204AL

BZW04-14-E3/54 is a TVS - Diodes manufactured by Vishay General Semiconductor - Diodes Division. TVS DIODE 13.6VWM 22.5VC DO204AL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case DO-204AL, DO-41, Axial.

Datasheet Request a Quote

In Stock: 1,371

Tiered Pricing USD

5,500+ $0.1497 —

11,000+ $0.1379 -8%

16,500+ $0.1318 -12%

27,500+ $0.1251 -16%

38,500+ $0.1213 -19% BEST

Specifications

16 parameters

Product Status	Active
Type	Zener
Unidirectional Channels	1
Bidirectional Channels	-
Voltage - Reverse Standoff (Typ)	13.6V
Voltage - Breakdown (Min)	15.2V
Voltage - Clamping (Max) @ Ipp	22.5V
Current - Peak Pulse (10/1000µs)	17.8A

Power - Peak Pulse	400W
Power Line Protection	No
Applications	General Purpose
Capacitance @ Frequency	-
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Through Hole
Package / Case	DO-204AL, DO-41, Axial
Supplier Device Package	DO-204AL (DO-41)
