BAV20W-G3-18

In Stock: 3,837

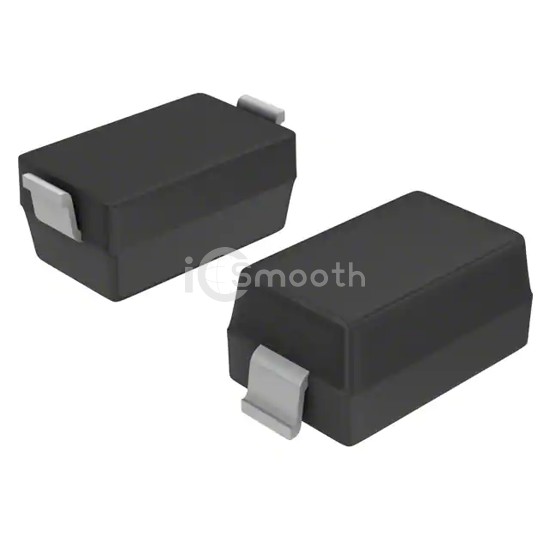

BAV20W-G3-18 - Vishay General Semiconductor - Diodes Division - Diodes - Rectifiers - Single
REF: BAV20W-G3-18 Vishay General Semiconductor - Diodes Division
BAV20W-G3-18

Vishay General Semiconductor - Diodes Division

DIODE GEN PURP 150V 250MA SOD123

BAV20W-G3-18 is a Diodes - Rectifiers - Single manufactured by Vishay General Semiconductor - Diodes Division. DIODE GEN PURP 150V 250MA SOD123. Key specifications: mounting type Surface Mount, package / case SOD-123.

Datasheet Request a Quote

In Stock: 3,837

Specifications

13 parameters
Product StatusActive
Diode TypeStandard
Voltage - DC Reverse (Vr) (Max)150 V
Current - Average Rectified (Io)250mA (DC)
Voltage - Forward (Vf) (Max) @ If1.25 V @ 200 mA
SpeedFast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)50 ns
Current - Reverse Leakage @ Vr100 nA @ 150 V
Capacitance @ Vr, F1.5pF @ 0V, 1MHz
Mounting TypeSurface Mount
Package / CaseSOD-123
Supplier Device PackageSOD-123
Operating Temperature - Junction150°C (Max)
