BAT42W-HE3-08

In Stock: 7,943

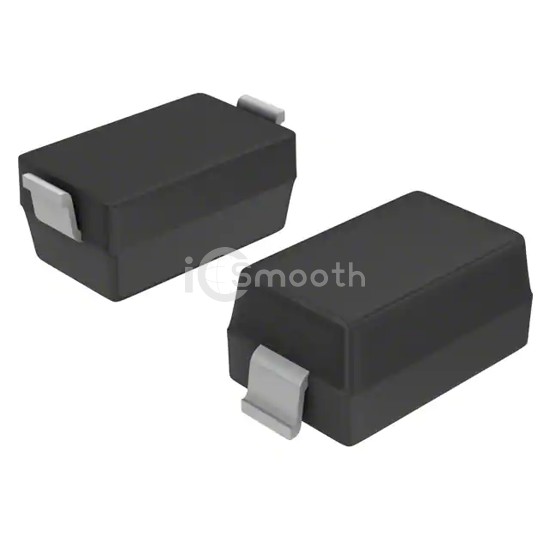

BAT42W-HE3-08 - Vishay General Semiconductor - Diodes Division - Diodes - Rectifiers - Single
REF: BAT42W-HE3-08 Vishay General Semiconductor - Diodes Division
BAT42W-HE3-08

Vishay General Semiconductor - Diodes Division

DIODE SCHOTTKY 30V 200MA SOD123

BAT42W-HE3-08 is a Diodes - Rectifiers - Single manufactured by Vishay General Semiconductor - Diodes Division. DIODE SCHOTTKY 30V 200MA SOD123. Key specifications: mounting type Surface Mount, package / case SOD-123.

Datasheet Request a Quote

In Stock: 7,943

Specifications

13 parameters
Product StatusActive
Diode TypeSchottky
Voltage - DC Reverse (Vr) (Max)30 V
Current - Average Rectified (Io)200mA (DC)
Voltage - Forward (Vf) (Max) @ If650 mV @ 50 mA
SpeedSmall Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr)5 ns
Current - Reverse Leakage @ Vr500 nA @ 25 V
Capacitance @ Vr, F7pF @ 1V, 1MHz
Mounting TypeSurface Mount
Package / CaseSOD-123
Supplier Device PackageSOD-123
Operating Temperature - Junction125°C (Max)
