BAS40-02V-G3-08

In Stock: 3,598

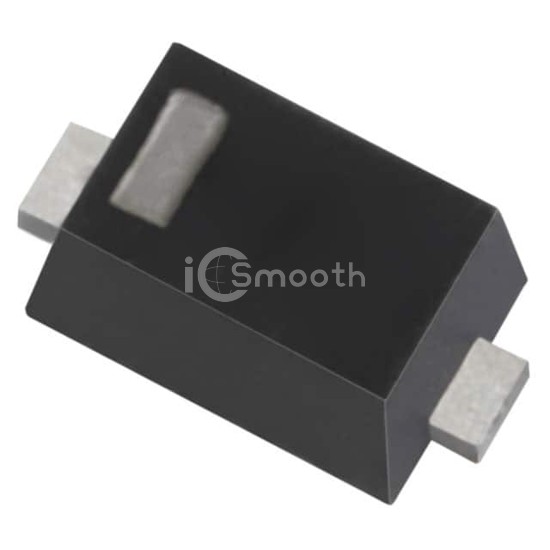

BAS40-02V-G3-08 - Vishay General Semiconductor - Diodes Division - Diodes - Rectifiers - Single
REF: BAS40-02V-G3-08 Vishay General Semiconductor - Diodes Division
BAS40-02V-G3-08

Vishay General Semiconductor - Diodes Division

DIODE SCHOTTKY 40V 120MA SOD523

BAS40-02V-G3-08 is a Diodes - Rectifiers - Single manufactured by Vishay General Semiconductor - Diodes Division. DIODE SCHOTTKY 40V 120MA SOD523. Key specifications: mounting type Surface Mount, package / case SC-79, SOD-523.

Datasheet Request a Quote

In Stock: 3,598

Specifications

13 parameters
Product StatusActive
Diode TypeSchottky
Voltage - DC Reverse (Vr) (Max)40 V
Current - Average Rectified (Io)120mA (DC)
Voltage - Forward (Vf) (Max) @ If1 V @ 40 mA
SpeedSmall Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr)5 ns
Current - Reverse Leakage @ Vr100 nA @ 30 V
Capacitance @ Vr, F4pF @ 0V, 1MHz
Mounting TypeSurface Mount
Package / CaseSC-79, SOD-523
Supplier Device PackageSOD-523
Operating Temperature - Junction125°C
