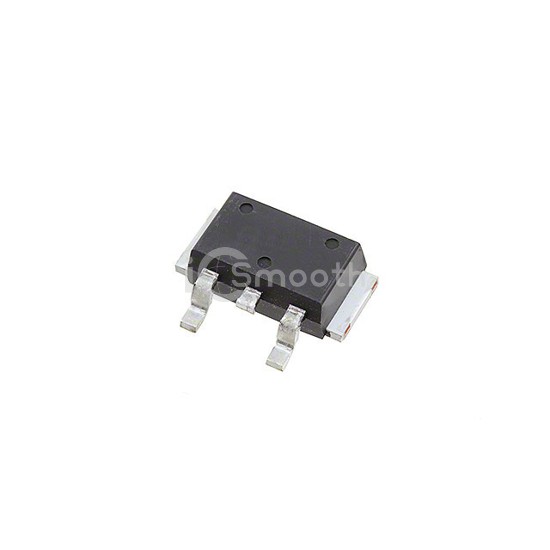

80CNQ040ASL

In Stock: 6,615
80CNQ040ASL - Vishay General Semiconductor - Diodes Division - Diodes - Rectifiers - Arrays
REF: 80CNQ040ASL Vishay General Semiconductor - Diodes Division
80CNQ040ASL

Vishay General Semiconductor - Diodes Division

DIODE ARRAY SCHOTTKY 40V D618SL

80CNQ040ASL is a Diodes - Rectifiers - Arrays manufactured by Vishay General Semiconductor - Diodes Division. DIODE ARRAY SCHOTTKY 40V D618SL. Key specifications: mounting type Surface Mount, package / case D-61-8-SL.

Datasheet Request a Quote

In Stock: 6,615

Specifications

13 parameters
Product StatusObsolete
Diode Configuration1 Pair Common Cathode
Diode TypeSchottky
Voltage - DC Reverse (Vr) (Max)40 V
Current - Average Rectified (Io) (per Diode)40A
Voltage - Forward (Vf) (Max) @ If520 mV @ 40 A
SpeedFast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)-
Current - Reverse Leakage @ Vr5 mA @ 40 V
Operating Temperature - Junction-55°C ~ 150°C
Mounting TypeSurface Mount
Package / CaseD-61-8-SL
Supplier Device PackageD-61-8-SL
