Name: 1N6294A-E3/54
Brand: Vishay General Semiconductor - Diodes Division
SKU: 1N6294A-E3/54
Price: 0.34 USD
Availability: InStock

REF: 1N6294A-E3/54 Vishay General Semiconductor - Diodes Division

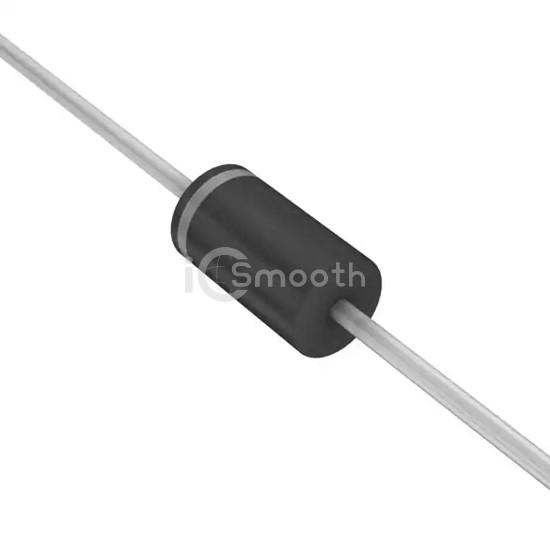

1N6294A-E3/54

Vishay General Semiconductor - Diodes Division

TVS DIODE 77.8VWM 125VC 1.5KE

1N6294A-E3/54 is a TVS - Diodes manufactured by Vishay General Semiconductor - Diodes Division. TVS DIODE 77.8VWM 125VC 1.5KE. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case DO-201AA, DO-27, Axial.

Datasheet Request a Quote

In Stock: 1,257

Tiered Pricing USD

1,400+ $0.3352 —

2,800+ $0.2393 -29% BEST

Specifications

16 parameters

Product Status	Active
Type	Zener
Unidirectional Channels	1
Bidirectional Channels	-
Voltage - Reverse Standoff (Typ)	77.8V
Voltage - Breakdown (Min)	86.5V
Voltage - Clamping (Max) @ Ipp	125V
Current - Peak Pulse (10/1000µs)	12A

Power - Peak Pulse	1500W (1.5kW)
Power Line Protection	No
Applications	General Purpose
Capacitance @ Frequency	-
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Through Hole
Package / Case	DO-201AA, DO-27, Axial
Supplier Device Package	1.5KE
