Name: 1N6276A-E3/54
Brand: Vishay General Semiconductor - Diodes Division
SKU: 1N6276A-E3/54
Price: 0.34 USD
Availability: InStock

REF: 1N6276A-E3/54 Vishay General Semiconductor - Diodes Division

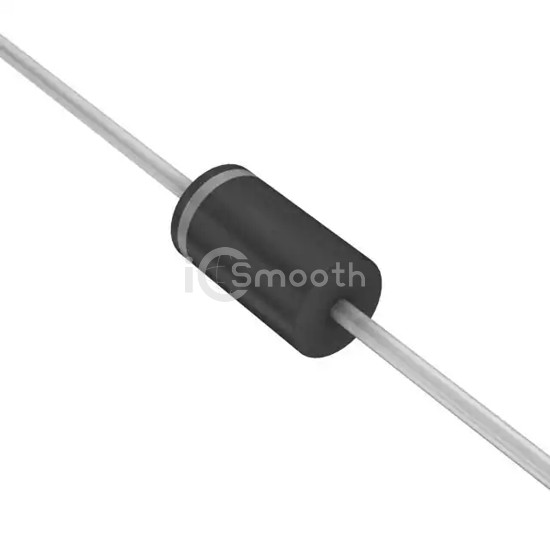

1N6276A-E3/54

Vishay General Semiconductor - Diodes Division

TVS DIODE 13.6VWM 22.5VC 1.5KE

1N6276A-E3/54 is a TVS - Diodes manufactured by Vishay General Semiconductor - Diodes Division. TVS DIODE 13.6VWM 22.5VC 1.5KE. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case DO-201AA, DO-27, Axial.

Datasheet Request a Quote

In Stock: 7,293

Tiered Pricing USD

1,400+ $0.3410 —

2,800+ $0.2490 -27%

4,200+ $0.2410 -29%

7,000+ $0.2405 -29%

9,800+ $0.2400 -30%

14,000+ $0.2395 -30%

35,000+ $0.2393 -30% BEST

Specifications

16 parameters

Product Status	Active
Type	Zener
Unidirectional Channels	1
Bidirectional Channels	-
Voltage - Reverse Standoff (Typ)	13.6V
Voltage - Breakdown (Min)	15.2V
Voltage - Clamping (Max) @ Ipp	22.5V
Current - Peak Pulse (10/1000µs)	66.7A

Power - Peak Pulse	1500W (1.5kW)
Power Line Protection	No
Applications	General Purpose
Capacitance @ Frequency	-
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Through Hole
Package / Case	DO-201AA, DO-27, Axial
Supplier Device Package	1.5KE
