163CNQ100

In Stock: 6,457

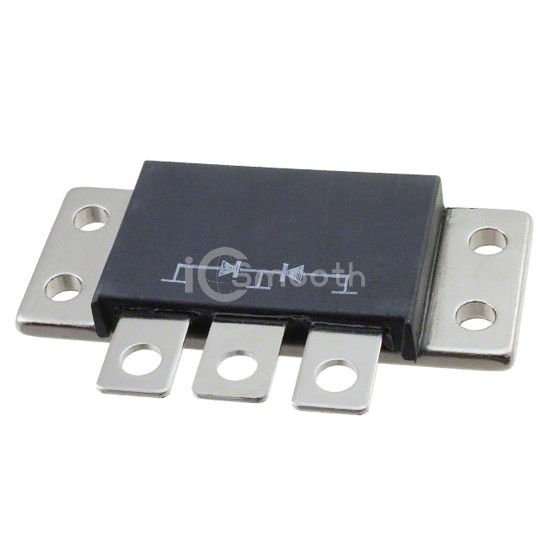

163CNQ100 - Vishay General Semiconductor - Diodes Division - Diodes - Rectifiers - Arrays
REF: 163CNQ100 Vishay General Semiconductor - Diodes Division
163CNQ100

Vishay General Semiconductor - Diodes Division

DIODE MODULE 100V 80A TO249AA

163CNQ100 is a Diodes - Rectifiers - Arrays manufactured by Vishay General Semiconductor - Diodes Division. DIODE MODULE 100V 80A TO249AA. Key specifications: mounting type Screw Mount, package / case TO-249AA.

Datasheet Request a Quote

In Stock: 6,457

Specifications

13 parameters
Product StatusObsolete
Diode Configuration1 Pair Common Cathode
Diode TypeSchottky
Voltage - DC Reverse (Vr) (Max)100 V
Current - Average Rectified (Io) (per Diode)80A
Voltage - Forward (Vf) (Max) @ If980 mV @ 80 A
SpeedFast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)-
Current - Reverse Leakage @ Vr1.5 mA @ 100 V
Operating Temperature - Junction-55°C ~ 175°C
Mounting TypeScrew Mount
Package / CaseTO-249AA
Supplier Device PackageTO-249AA
