1.5SMC56CAHM3_A/H

In Stock: 3,136

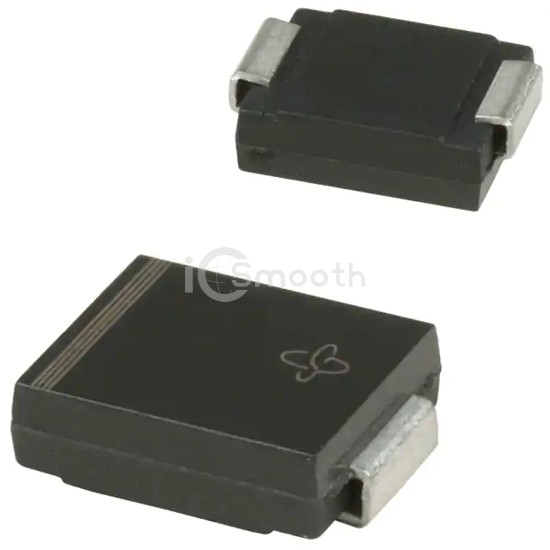

1.5SMC56CAHM3_A/H - Vishay General Semiconductor - Diodes Division - TVS - Diodes
REF: 1.5SMC56CAHM3_A/H Vishay General Semiconductor - Diodes Division
1.5SMC56CAHM3_A/H

Vishay General Semiconductor - Diodes Division

TVS DIODE 47.8VWM 77VC DO214AB

1.5SMC56CAHM3_A/H is a TVS - Diodes manufactured by Vishay General Semiconductor - Diodes Division. TVS DIODE 47.8VWM 77VC DO214AB. Key specifications: mounting type Surface Mount, operating temperature -65°C ~ 150°C (TJ), package / case DO-214AB, SMC.

Datasheet Request a Quote

In Stock: 3,136

Tiered Pricing USD
1+ $1.4500 —
10+ $0.9160 -37%
100+ $0.6083 -58% BEST

Specifications

16 parameters
Product StatusActive
TypeZener
Unidirectional Channels-
Bidirectional Channels1
Voltage - Reverse Standoff (Typ)47.8V
Voltage - Breakdown (Min)53.2V
Voltage - Clamping (Max) @ Ipp77V
Current - Peak Pulse (10/1000µs)19.5A
Power - Peak Pulse1500W (1.5kW)
Power Line ProtectionNo
ApplicationsAutomotive, Telecom
Capacitance @ Frequency-
Operating Temperature-65°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / CaseDO-214AB, SMC
Supplier Device PackageDO-214AB (SMC)
