UCC3809D-2

In Stock: 731

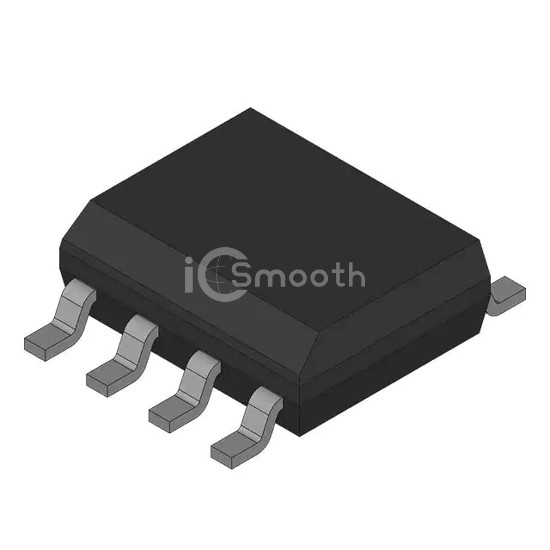

UCC3809D-2 - Unitrode - PMIC - AC DC Converters, Offline Switchers
REF: UCC3809D-2 Unitrode
UCC3809D-2

Unitrode

IC OFFLINE SWITCH MULT TOP 8SOIC

UCC3809D-2 is a PMIC - AC DC Converters, Offline Switchers manufactured by Unitrode. IC OFFLINE SWITCH MULT TOP 8SOIC. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), voltage - supply (vcc/vdd) 8V ~ 19V, package / case 8-SOIC (0.154", 3.90mm Width).

Datasheet Request a Quote

In Stock: 731

Tiered Pricing USD
1+ $3.5000 —
10+ $2.6340 -25%
75+ $2.2212 -37% BEST

Specifications

16 parameters
Product StatusActive
Output IsolationIsolated
Internal Switch(s)No
Voltage - Breakdown-
TopologyBoost, Buck, Flyback, Forward
Voltage - Start Up15 V
Voltage - Supply (Vcc/Vdd)8V ~ 19V
Duty Cycle70%
Frequency - Switching1MHz
Power (Watts)-
Fault Protection-
Control FeaturesFrequency Control, Soft Start
Operating Temperature-55°C ~ 150°C (TJ)
Package / Case8-SOIC (0.154", 3.90mm Width)
Supplier Device Package8-SOIC
Mounting TypeSurface Mount
