UCC2806NG4

In Stock: 3,863

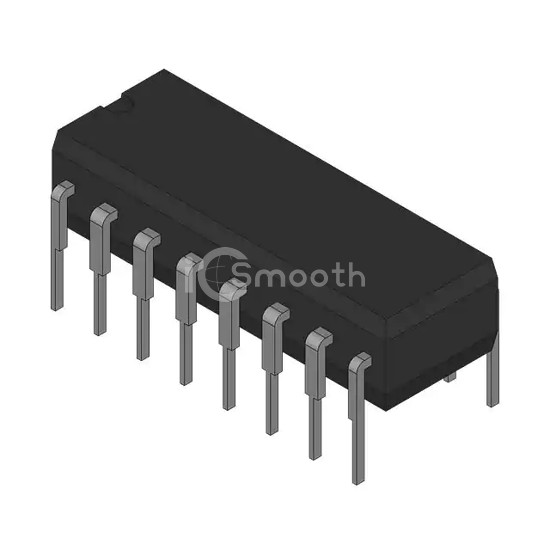

UCC2806NG4 - Unitrode - PMIC - Voltage Regulators - DC DC Switching Controllers
REF: UCC2806NG4 Unitrode
UCC2806NG4

Unitrode

0.5A, 1000KHZ BICMOS, PDIP16

UCC2806NG4 is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Unitrode. 0.5A, 1000KHZ BICMOS, PDIP16. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) 8V ~ 14.5V, package / case 16-DIP (0.300", 7.62mm).

Datasheet Request a Quote

In Stock: 3,863

Specifications

18 parameters
Product StatusActive
Output TypeTransistor Driver
FunctionStep-Up, Step-Up/Step-Down
Output ConfigurationPositive, Isolation Capable
TopologyBoost, Flyback, Forward Converter
Number of Outputs2
Output Phases1
Voltage - Supply (Vcc/Vdd)8V ~ 14.5V
Frequency - Switching47kHz
Duty Cycle (Max)50%
Synchronous RectifierYes
Clock SyncNo
Serial Interfaces-
Control FeaturesCurrent Limit, Enable, Frequency Control
Operating Temperature-40°C ~ 85°C (TA)
Mounting TypeThrough Hole
Package / Case16-DIP (0.300", 7.62mm)
Supplier Device Package16-PDIP
