UCC27221PWP

In Stock: 180

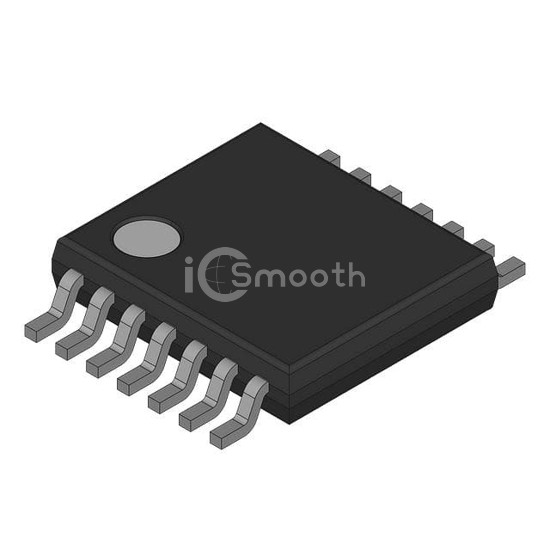

UCC27221PWP - Unitrode - PMIC - Gate Drivers
REF: UCC27221PWP Unitrode
UCC27221PWP

Unitrode

HALF BRIDGE BASED MOSFET DRIVER

UCC27221PWP is a PMIC - Gate Drivers manufactured by Unitrode. HALF BRIDGE BASED MOSFET DRIVER. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 115°C (TJ), voltage - supply 3.7V ~ 20V, package / case 14-TSSOP (0.173", 4.40mm Width) Exposed Pad.

Datasheet Request a Quote

In Stock: 180

Specifications

15 parameters
Product StatusObsolete
Driven ConfigurationHalf-Bridge
Channel TypeSynchronous
Number of Drivers2
Gate TypeN-Channel MOSFET
Voltage - Supply3.7V ~ 20V
Logic Voltage - VIL, VIH0.7V, 2.6V
Current - Peak Output (Source, Sink)4A, 4A
Input TypeInverting
High Side Voltage - Max (Bootstrap)-
Rise / Fall Time (Typ)17ns, 17ns
Operating Temperature-55°C ~ 115°C (TJ)
Mounting TypeSurface Mount
Package / Case14-TSSOP (0.173", 4.40mm Width) Exposed Pad
Supplier Device Package14-HTSSOP
