UCC2580N-3G4

In Stock: 7,730

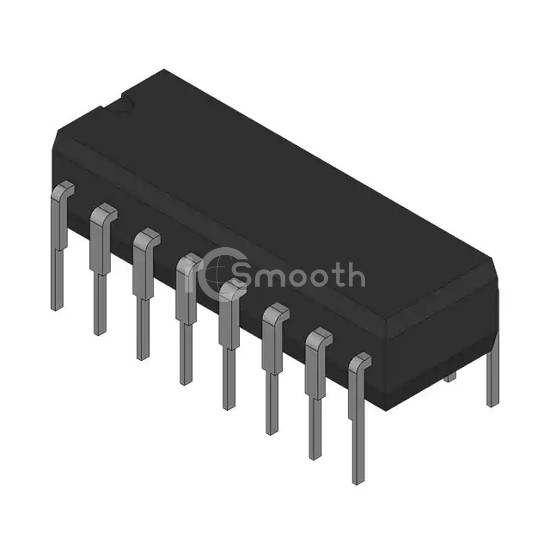

UCC2580N-3G4 - Unitrode - PMIC - Voltage Regulators - DC DC Switching Controllers
REF: UCC2580N-3G4 Unitrode
UCC2580N-3G4

Unitrode

SWITCHING CONTROLLER

UCC2580N-3G4 is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Unitrode. SWITCHING CONTROLLER. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) 8.5V ~ 16V, package / case 16-DIP (0.300", 7.62mm).

Datasheet Request a Quote

In Stock: 7,730

Specifications

18 parameters
Product StatusObsolete
Output TypeTransistor Driver
FunctionStep-Up/Step-Down
Output ConfigurationPositive or Negative
TopologyForward Converter
Number of Outputs2
Output Phases1
Voltage - Supply (Vcc/Vdd)8.5V ~ 16V
Frequency - Switching400kHz
Duty Cycle (Max)66%
Synchronous RectifierNo
Clock SyncNo
Serial Interfaces-
Control FeaturesEnable, Ramp, Soft Start
Operating Temperature-40°C ~ 85°C (TA)
Mounting TypeThrough Hole
Package / Case16-DIP (0.300", 7.62mm)
Supplier Device Package16-PDIP
