UC3825AQ

In Stock: 84

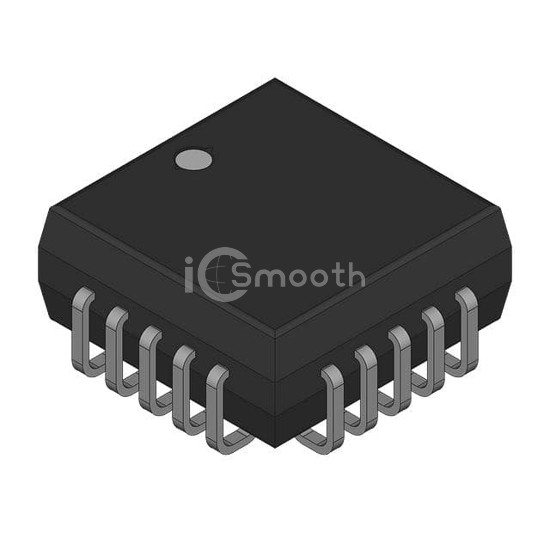

UC3825AQ - Unitrode - PMIC - Voltage Regulators - DC DC Switching Controllers
REF: UC3825AQ Unitrode
UC3825AQ

Unitrode

SWITCHING CONTROLLER, VOLTAGE-MO

UC3825AQ is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Unitrode. SWITCHING CONTROLLER, VOLTAGE-MO. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 70°C (TA), voltage - supply (vcc/vdd) 8.4V ~ 22V, package / case 20-LCC (J-Lead).

Datasheet Request a Quote

In Stock: 84

Specifications

18 parameters
Product StatusActive
Output TypeTransistor Driver
FunctionStep-Up, Step-Up/Step-Down
Output ConfigurationPositive
TopologyBoost, Flyback, Forward Converter, Full-Bridge, Half-Bridge, Push-Pull
Number of Outputs2
Output Phases1
Voltage - Supply (Vcc/Vdd)8.4V ~ 22V
Frequency - Switching400kHz ~ 1MHz
Duty Cycle (Max)50%
Synchronous RectifierNo
Clock SyncNo
Serial Interfaces-
Control FeaturesCurrent Limit, Frequency Control, Ramp, Soft Start
Operating Temperature0°C ~ 70°C (TA)
Mounting TypeSurface Mount
Package / Case20-LCC (J-Lead)
Supplier Device Package20-PLCC (9x9)
