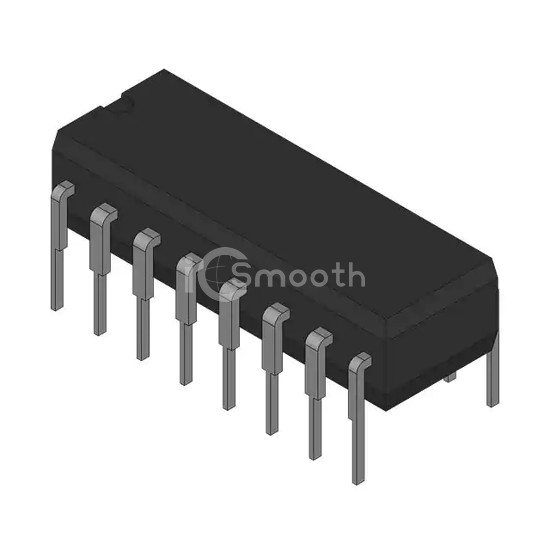

UC2856N - Unitrode - PMIC - Voltage Regulators - DC DC Switching Controllers
REF: UC2856N Unitrode
UC2856N

Unitrode

UC2856 IMPROVED CURRENT MODE PWM

UC2856N is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Unitrode. UC2856 IMPROVED CURRENT MODE PWM. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) 7V ~ 40V, package / case 16-DIP (0.300", 7.62mm).

Datasheet Request a Quote

In Stock: 107

Specifications

18 parameters
Product StatusActive
Output TypeTransistor Driver
FunctionStep-Up, Step-Up/Step-Down
Output ConfigurationPositive
TopologyBoost, Flyback, Forward Converter, Full-Bridge, Half-Bridge, Push-Pull
Number of Outputs2
Output Phases1
Voltage - Supply (Vcc/Vdd)7V ~ 40V
Frequency - Switching200kHz
Duty Cycle (Max)47%
Synchronous RectifierYes
Clock SyncYes
Serial Interfaces-
Control FeaturesEnable, Frequency Control, Soft Start
Operating Temperature-40°C ~ 85°C (TA)
Mounting TypeThrough Hole
Package / Case16-DIP (0.300", 7.62mm)
Supplier Device Package16-PDIP
