UC2524NG4

In Stock: 7,724
UC2524NG4 - Unitrode - PMIC - Voltage Regulators - DC DC Switching Controllers
REF: UC2524NG4 Unitrode

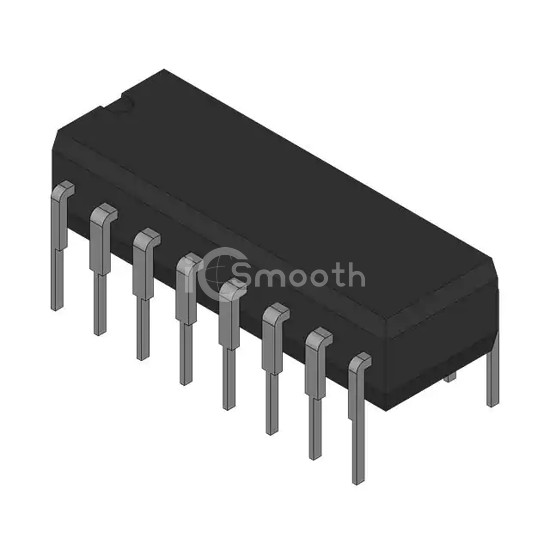

UC2524NG4

Unitrode

SWITCHING CONTROLLER

UC2524NG4 is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Unitrode. SWITCHING CONTROLLER. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 85°C (TA), voltage - supply (vcc/vdd) 8V ~ 40V, package / case 16-DIP (0.300", 7.62mm).

Datasheet Request a Quote

In Stock: 7,724

Specifications

18 parameters
Product StatusObsolete
Output TypeTransistor Driver
FunctionStep-Up, Step-Up/Step-Down
Output ConfigurationPositive
TopologyBoost, Flyback, Forward Converter, Full-Bridge, Half-Bridge, Push-Pull
Number of Outputs2
Output Phases1
Voltage - Supply (Vcc/Vdd)8V ~ 40V
Frequency - Switching300kHz
Duty Cycle (Max)45%
Synchronous RectifierNo
Clock SyncNo
Serial Interfaces-
Control FeaturesCurrent Limit, Enable, Frequency Control, Ramp
Operating Temperature-25°C ~ 85°C (TA)
Mounting TypeThrough Hole
Package / Case16-DIP (0.300", 7.62mm)
Supplier Device Package16-PDIP
