Name: UM1770DA-00
Brand: Union Semiconductor (HK) Limited
SKU: UM1770DA-00
Price: 0.52 USD
Availability: InStock

REF: UM1770DA-00 Union Semiconductor (HK) Limited

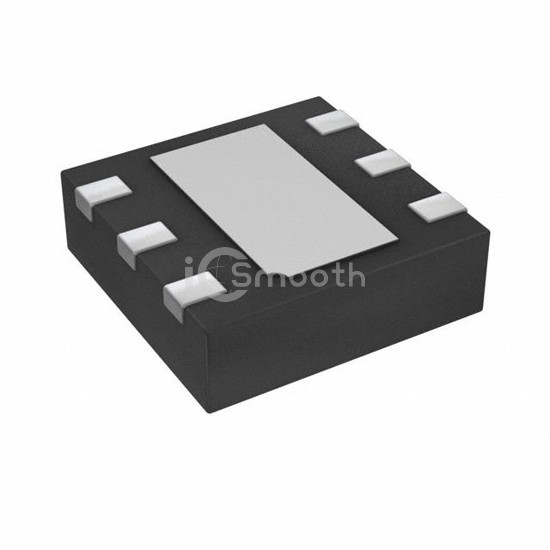

UM1770DA-00

Union Semiconductor (HK) Limited

IC REG LINEAR POS ADJ 500MA 6DFN

UM1770DA-00 is a PMIC - Voltage Regulators - Linear manufactured by Union Semiconductor (HK) Limited. IC REG LINEAR POS ADJ 500MA 6DFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), package / case 6-WDFN Exposed Pad, current - supply (max) 300 µA.

Datasheet Request a Quote

In Stock: 9,590

Tiered Pricing USD

2+ $0.5200 —

10+ $0.3700 -29%

100+ $0.2900 -44%

500+ $0.2200 -58% BEST

Specifications

18 parameters

Product Status	Active
Output Configuration	Positive
Output Type	Adjustable
Number of Regulators	1
Voltage - Input (Max)	6V
Voltage - Output (Min/Fixed)	1V
Voltage - Output (Max)	5V
Voltage Dropout (Max)	0.32V @ 500mA
Current - Output	500mA

Current - Quiescent (Iq)	140 µA
Current - Supply (Max)	300 µA
PSRR	65dB ~ 45dB (100Hz ~ 10kHz)
Control Features	Enable
Protection Features	Over Current, Over Temperature, Short Circuit
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	6-WDFN Exposed Pad
Supplier Device Package	6-DFN (2x2)
