OPIA402BTR

In Stock: 2,993

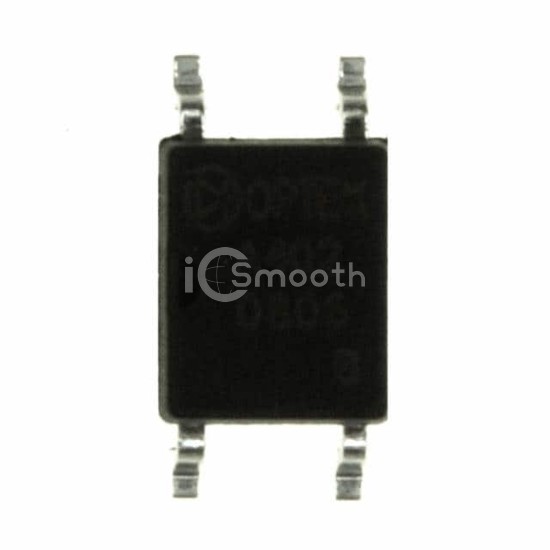

OPIA402BTR - TT Electronics/Optek Technology - Optoisolators - Transistor, Photovoltaic Output
REF: OPIA402BTR TT Electronics/Optek Technology
OPIA402BTR

TT Electronics/Optek Technology

OPTOISOLATOR 3.75KV TRANS 4-SOP

OPIA402BTR is a Optoisolators - Transistor, Photovoltaic Output manufactured by TT Electronics/Optek Technology. OPTOISOLATOR 3.75KV TRANS 4-SOP. Key specifications: mounting type Surface Mount, operating temperature -30°C ~ 100°C, voltage - forward (vf) (typ) 1.2V, package / case 4-SMD, Gull Wing.

Datasheet Request a Quote

In Stock: 2,993

Specifications

18 parameters
Product StatusObsolete
Number of Channels1
Voltage - Isolation3750Vrms
Current Transfer Ratio (Min)20% @ 1mA
Current Transfer Ratio (Max)400% @ 1mA
Turn On / Turn Off Time (Typ)-
Rise / Fall Time (Typ)4µs, 3µs
Input TypeAC, DC
Output TypeTransistor
Voltage - Output (Max)60V
Current - Output / Channel50mA
Voltage - Forward (Vf) (Typ)1.2V
Current - DC Forward (If) (Max)50 mA
Vce Saturation (Max)300mV
Operating Temperature-30°C ~ 100°C
Mounting TypeSurface Mount
Package / Case4-SMD, Gull Wing
Supplier Device Package4-SOP (2.54mm)
