Name: OPIA4010ATR
Brand: TT Electronics/Optek Technology
SKU: OPIA4010ATR
Availability: InStock

REF: OPIA4010ATR TT Electronics/Optek Technology

OPIA4010ATR

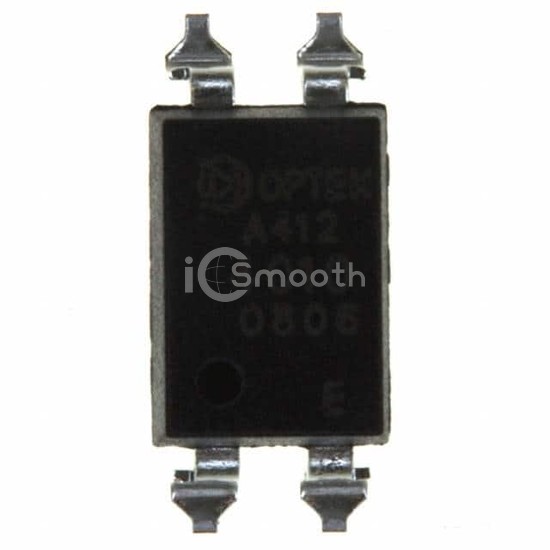

OPTOISOLTR 5KV DARLINGTON 4-SMD

OPIA4010ATR is a Optoisolators - Transistor, Photovoltaic Output manufactured by TT Electronics/Optek Technology. OPTOISOLTR 5KV DARLINGTON 4-SMD. Key specifications: mounting type Surface Mount, operating temperature -30°C ~ 100°C, voltage - forward (vf) (typ) 1.2V, package / case 4-SMD, Gull Wing.

Datasheet Request a Quote

In Stock: 2,611

Specifications

18 parameters

Product Status	Obsolete
Number of Channels	1
Voltage - Isolation	5000Vrms
Current Transfer Ratio (Min)	600% @ 1mA
Current Transfer Ratio (Max)	9000% @ 1mA
Turn On / Turn Off Time (Typ)	-
Rise / Fall Time (Typ)	60µs, 50µs
Input Type	DC
Output Type	Darlington

Voltage - Output (Max)	300V
Current - Output / Channel	150mA
Voltage - Forward (Vf) (Typ)	1.2V
Current - DC Forward (If) (Max)	50 mA
Vce Saturation (Max)	1.5V
Operating Temperature	-30°C ~ 100°C
Mounting Type	Surface Mount
Package / Case	4-SMD, Gull Wing
Supplier Device Package	4-SMD
