Name: OPIA1210ATRE
Brand: TT Electronics/Optek Technology
SKU: OPIA1210ATRE
Availability: InStock

REF: OPIA1210ATRE TT Electronics/Optek Technology

OPIA1210ATRE

OPTOISOLATR 5KV TRANSISTOR 4-SMD

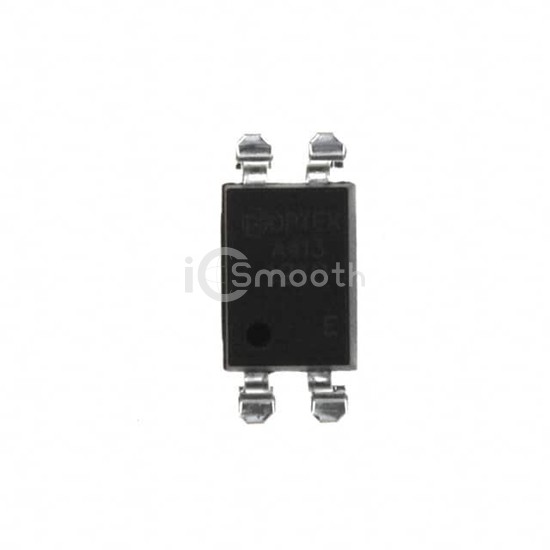

OPIA1210ATRE is a Optoisolators - Transistor, Photovoltaic Output manufactured by TT Electronics/Optek Technology. OPTOISOLATR 5KV TRANSISTOR 4-SMD. Key specifications: mounting type Surface Mount, operating temperature -30°C ~ 100°C, voltage - forward (vf) (typ) 1.2V, package / case 4-SMD, Gull Wing.

Datasheet Request a Quote

In Stock: 1,965

Specifications

18 parameters

Product Status	Obsolete
Number of Channels	1
Voltage - Isolation	5000Vrms
Current Transfer Ratio (Min)	50% @ 5mA
Current Transfer Ratio (Max)	600% @ 5mA
Turn On / Turn Off Time (Typ)	-
Rise / Fall Time (Typ)	2µs, 3µs
Input Type	DC
Output Type	Transistor

Voltage - Output (Max)	350V
Current - Output / Channel	50mA
Voltage - Forward (Vf) (Typ)	1.2V
Current - DC Forward (If) (Max)	50 mA
Vce Saturation (Max)	400mV
Operating Temperature	-30°C ~ 100°C
Mounting Type	Surface Mount
Package / Case	4-SMD, Gull Wing
Supplier Device Package	4-SMD
