JANTX4N48A

In Stock: 4,347

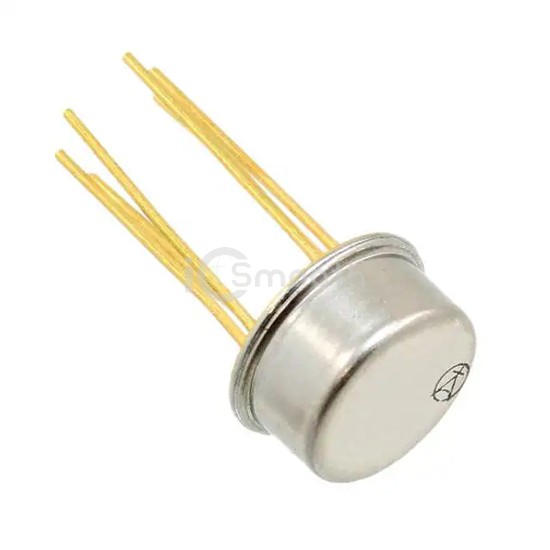

JANTX4N48A - TT Electronics/Optek Technology - Optoisolators - Transistor, Photovoltaic Output
REF: JANTX4N48A TT Electronics/Optek Technology
JANTX4N48A

TT Electronics/Optek Technology

OPTOISO 1KV TRANS W/BASE TO78-6

JANTX4N48A is a Optoisolators - Transistor, Photovoltaic Output manufactured by TT Electronics/Optek Technology. OPTOISO 1KV TRANS W/BASE TO78-6. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C, voltage - forward (vf) (typ) 1.5V (Max), package / case TO-78-6 Metal Can.

Datasheet Request a Quote

In Stock: 4,347

Specifications

18 parameters
Product StatusActive
Number of Channels1
Voltage - Isolation1000VDC
Current Transfer Ratio (Min)100% @ 1mA
Current Transfer Ratio (Max)500% @ 1mA
Turn On / Turn Off Time (Typ)-
Rise / Fall Time (Typ)20µs, 20µs (Max)
Input TypeDC
Output TypeTransistor with Base
Voltage - Output (Max)40V
Current - Output / Channel50mA
Voltage - Forward (Vf) (Typ)1.5V (Max)
Current - DC Forward (If) (Max)40 mA
Vce Saturation (Max)300mV
Operating Temperature-55°C ~ 125°C
Mounting TypeThrough Hole
Package / CaseTO-78-6 Metal Can
Supplier Device PackageTO-78-6
