Name: JAN4N22A
Brand: TT Electronics/Optek Technology
SKU: JAN4N22A
Price: 38.15 USD
Availability: InStock

REF: JAN4N22A TT Electronics/Optek Technology

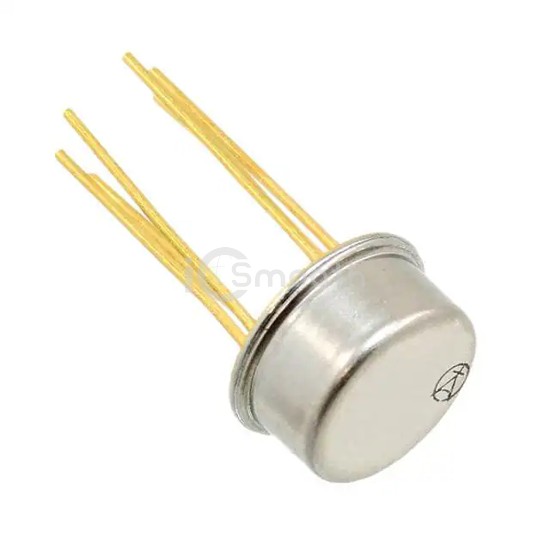

JAN4N22A

TT Electronics/Optek Technology

OPTOISO 1KV TRANS W/BASE TO78-6

JAN4N22A is a Optoisolators - Transistor, Photovoltaic Output manufactured by TT Electronics/Optek Technology. OPTOISO 1KV TRANS W/BASE TO78-6. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C, voltage - forward (vf) (typ) 1.5V (Max), package / case TO-78-6 Metal Can.

Datasheet Request a Quote

In Stock: 72

Tiered Pricing USD

2+ $38.1500 —

16+ $36.6800 -4%

46+ $35.2700 -8% BEST

Specifications

18 parameters

Product Status	Obsolete
Number of Channels	1
Voltage - Isolation	1000VDC
Current Transfer Ratio (Min)	25% @ 10mA
Current Transfer Ratio (Max)	-
Turn On / Turn Off Time (Typ)	-
Rise / Fall Time (Typ)	20µs, 20µs (Max)
Input Type	DC
Output Type	Transistor with Base

Voltage - Output (Max)	40V
Current - Output / Channel	50mA
Voltage - Forward (Vf) (Typ)	1.5V (Max)
Current - DC Forward (If) (Max)	40 mA
Vce Saturation (Max)	300mV
Operating Temperature	-55°C ~ 125°C
Mounting Type	Through Hole
Package / Case	TO-78-6 Metal Can
Supplier Device Package	TO-78-6
