Name: HCC242TXV
Brand: TT Electronics/Optek Technology
SKU: HCC242TXV
Price: 25.63 USD
Availability: InStock

REF: HCC242TXV TT Electronics/Optek Technology

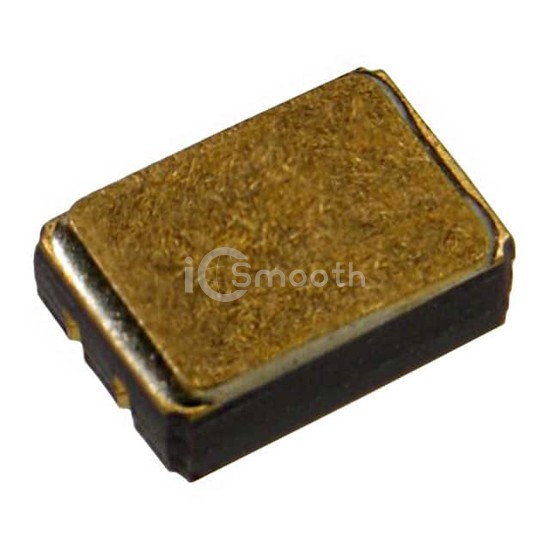

HCC242TXV

TT Electronics/Optek Technology

OPTOISOLATOR 1KV TRANS 4-CLCC

HCC242TXV is a Optoisolators - Transistor, Photovoltaic Output manufactured by TT Electronics/Optek Technology. OPTOISOLATOR 1KV TRANS 4-CLCC. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, voltage - forward (vf) (typ) 1.5V (Max), package / case 4-SMD, No Lead.

Datasheet Request a Quote

In Stock: 71

Tiered Pricing USD

3+ $25.6300 —

21+ $24.6400 -4%

60+ $23.7000 -8% BEST

Specifications

18 parameters

Product Status	Obsolete
Number of Channels	1
Voltage - Isolation	1000VDC
Current Transfer Ratio (Min)	100% @ 10mA
Current Transfer Ratio (Max)	-
Turn On / Turn Off Time (Typ)	-
Rise / Fall Time (Typ)	20µs, 20µs
Input Type	DC
Output Type	Transistor

Voltage - Output (Max)	30V
Current - Output / Channel	50mA
Voltage - Forward (Vf) (Typ)	1.5V (Max)
Current - DC Forward (If) (Max)	40 mA
Vce Saturation (Max)	300mV
Operating Temperature	-55°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	4-SMD, No Lead
Supplier Device Package	4-CLCC (5.59x3.81)
