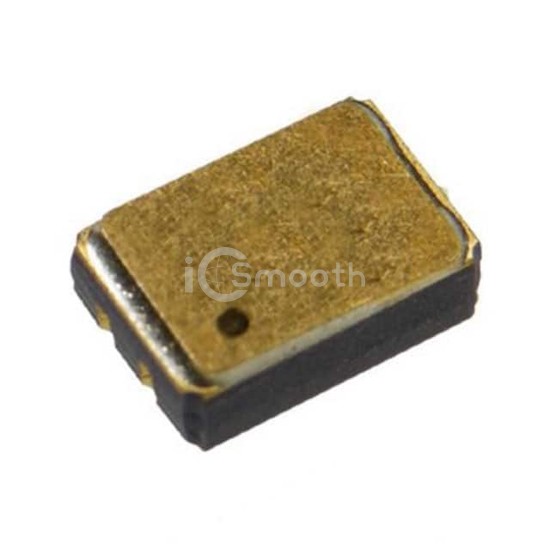

HCC1002

TT Electronics/Optek Technology

RADIATION CAPABLE OPTOISOLATOR 4

HCC1002 is a Optoisolators - Transistor, Photovoltaic Output manufactured by TT Electronics/Optek Technology. RADIATION CAPABLE OPTOISOLATOR 4. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C, voltage - forward (vf) (typ) 1.9V (Max), package / case 4-CLCC.

Datasheet Request a Quote

In Stock: 9,775

Specifications

18 parameters

Product Status	Active
Number of Channels	1
Voltage - Isolation	1000VDC
Current Transfer Ratio (Min)	-
Current Transfer Ratio (Max)	-
Turn On / Turn Off Time (Typ)	-
Rise / Fall Time (Typ)	20µs, 20µs (Max)
Input Type	DC
Output Type	-

Voltage - Output (Max)	40V
Current - Output / Channel	50mA
Voltage - Forward (Vf) (Typ)	1.9V (Max)
Current - DC Forward (If) (Max)	40 mA
Vce Saturation (Max)	300mV
Operating Temperature	-55°C ~ 150°C
Mounting Type	Surface Mount
Package / Case	4-CLCC
Supplier Device Package	4-LCC (3.81x5.59)
