HCC1000

In Stock: 1,752

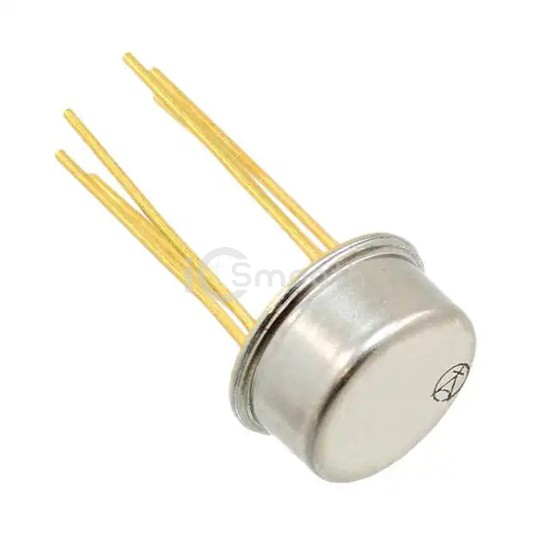

HCC1000 - TT Electronics/Optek Technology - Optoisolators - Transistor, Photovoltaic Output
REF: HCC1000 TT Electronics/Optek Technology
HCC1000

TT Electronics/Optek Technology

RADIATION CAPABLE OPTOISOLATOR M

HCC1000 is a Optoisolators - Transistor, Photovoltaic Output manufactured by TT Electronics/Optek Technology. RADIATION CAPABLE OPTOISOLATOR M. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C, voltage - forward (vf) (typ) 1.9V (Max), package / case TO-78-6 Metal Can.

Datasheet Request a Quote

In Stock: 1,752

Specifications

18 parameters
Product StatusActive
Number of Channels1
Voltage - Isolation1000VDC
Current Transfer Ratio (Min)-
Current Transfer Ratio (Max)-
Turn On / Turn Off Time (Typ)-
Rise / Fall Time (Typ)20µs, 20µs (Max)
Input TypeDC
Output Type-
Voltage - Output (Max)40V
Current - Output / Channel50mA
Voltage - Forward (Vf) (Typ)1.9V (Max)
Current - DC Forward (If) (Max)40 mA
Vce Saturation (Max)300mV
Operating Temperature-55°C ~ 150°C
Mounting TypeThrough Hole
Package / CaseTO-78-6 Metal Can
Supplier Device PackageTO-78-6
