3N261TX

In Stock: 6,686

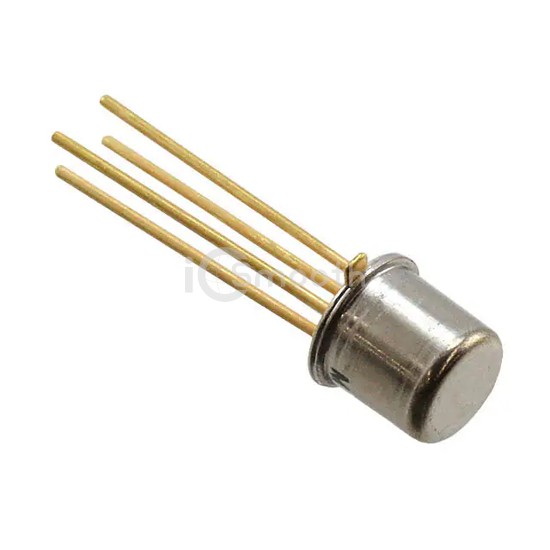

3N261TX - TT Electronics/Optek Technology - Optoisolators - Transistor, Photovoltaic Output
REF: 3N261TX TT Electronics/Optek Technology
3N261TX

TT Electronics/Optek Technology

OPTOISOLATOR 1KV TRANS TO72-4

3N261TX is a Optoisolators - Transistor, Photovoltaic Output manufactured by TT Electronics/Optek Technology. OPTOISOLATOR 1KV TRANS TO72-4. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C, voltage - forward (vf) (typ) 1.5V (Max), package / case TO-206AF, TO-72-4 Metal Can.

Datasheet Request a Quote

In Stock: 6,686

Specifications

18 parameters
Product StatusObsolete
Number of Channels1
Voltage - Isolation1000VDC
Current Transfer Ratio (Min)5% @ 1mA
Current Transfer Ratio (Max)-
Turn On / Turn Off Time (Typ)-
Rise / Fall Time (Typ)20µs, 10µs (Max)
Input TypeDC
Output TypeTransistor
Voltage - Output (Max)30V
Current - Output / Channel30mA
Voltage - Forward (Vf) (Typ)1.5V (Max)
Current - DC Forward (If) (Max)40 mA
Vce Saturation (Max)300mV
Operating Temperature-55°C ~ 125°C
Mounting TypeThrough Hole
Package / CaseTO-206AF, TO-72-4 Metal Can
Supplier Device PackageTO-72-4
