Name: 3C92CTXV
Brand: TT Electronics/Optek Technology
SKU: 3C92CTXV
Availability: InStock

REF: 3C92CTXV TT Electronics/Optek Technology

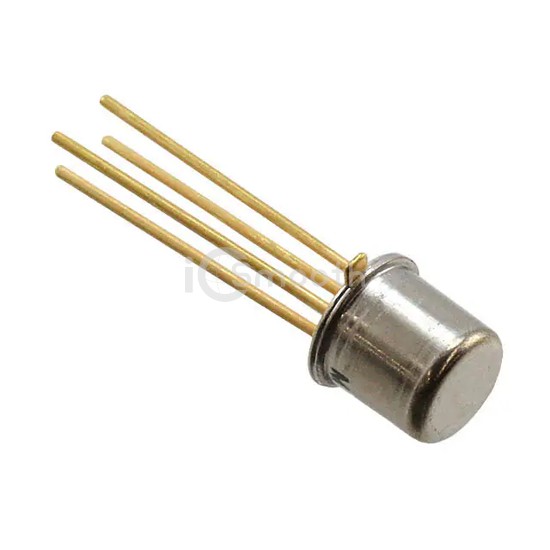

3C92CTXV

OPTOISOLATOR 1KV TRANS TO72-4

3C92CTXV is a Optoisolators - Transistor, Photovoltaic Output manufactured by TT Electronics/Optek Technology. OPTOISOLATOR 1KV TRANS TO72-4. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C, voltage - forward (vf) (typ) 1.2V (Max), package / case TO-206AF, TO-72-4 Metal Can.

Datasheet Request a Quote

In Stock: 6,898

Specifications

18 parameters

Product Status	Obsolete
Number of Channels	1
Voltage - Isolation	1000VDC
Current Transfer Ratio (Min)	30% @ 10mA
Current Transfer Ratio (Max)	200% @ 10mA
Turn On / Turn Off Time (Typ)	9µs, 6µs (Max)
Rise / Fall Time (Typ)	-
Input Type	DC
Output Type	Transistor

Voltage - Output (Max)	50V
Current - Output / Channel	30mA
Voltage - Forward (Vf) (Typ)	1.2V (Max)
Current - DC Forward (If) (Max)	50 mA
Vce Saturation (Max)	400mV
Operating Temperature	-55°C ~ 125°C
Mounting Type	Through Hole
Package / Case	TO-206AF, TO-72-4 Metal Can
Supplier Device Package	TO-72-4
