Name: TLX9905(TPL,F
Brand: Toshiba Semiconductor and Storage
SKU: TLX9905(TPL,F
Price: 4.10 USD
Availability: InStock

REF: TLX9905(TPL,F Toshiba Semiconductor and Storage

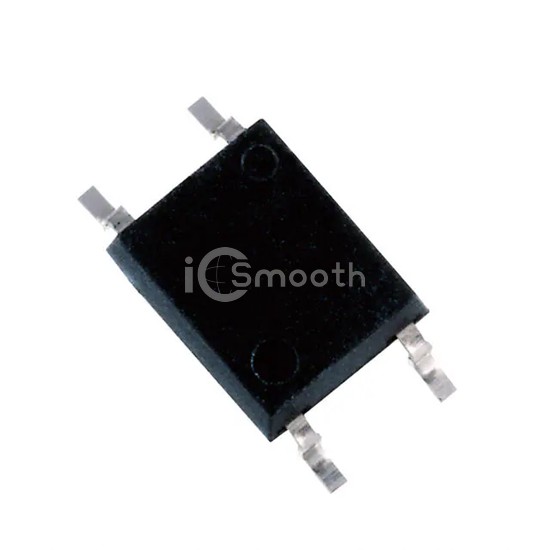

TLX9905(TPL,F

Toshiba Semiconductor and Storage

PV COUPLER; 4-PIN SO6; AECQ; ROH

TLX9905(TPL,F is a Optoisolators - Transistor, Photovoltaic Output manufactured by Toshiba Semiconductor and Storage. PV COUPLER; 4-PIN SO6; AECQ; ROH. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - forward (vf) (typ) 1.65V, package / case 6-SOIC (0.173", 4.40mm Width), 4 Leads.

Datasheet Request a Quote

In Stock: 3,000

Tiered Pricing USD

1+ $4.1000 —

10+ $3.0230 -26%

100+ $2.3872 -42%

500+ $2.1086 -49%

1,000+ $2.0655 -50% BEST

Specifications

18 parameters

Product Status	Active
Number of Channels	1
Voltage - Isolation	3750Vrms
Current Transfer Ratio (Min)	-
Current Transfer Ratio (Max)	-
Turn On / Turn Off Time (Typ)	300µs, 1ms
Rise / Fall Time (Typ)	-
Input Type	DC
Output Type	Photovoltaic

Voltage - Output (Max)	7V
Current - Output / Channel	-
Voltage - Forward (Vf) (Typ)	1.65V
Current - DC Forward (If) (Max)	30 mA
Vce Saturation (Max)	-
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	6-SOIC (0.173", 4.40mm Width), 4 Leads
Supplier Device Package	6-SOP
