Name: TLX9300(TPL,F
Brand: Toshiba Semiconductor and Storage
SKU: TLX9300(TPL,F
Price: 3.34 USD
Availability: InStock

REF: TLX9300(TPL,F Toshiba Semiconductor and Storage

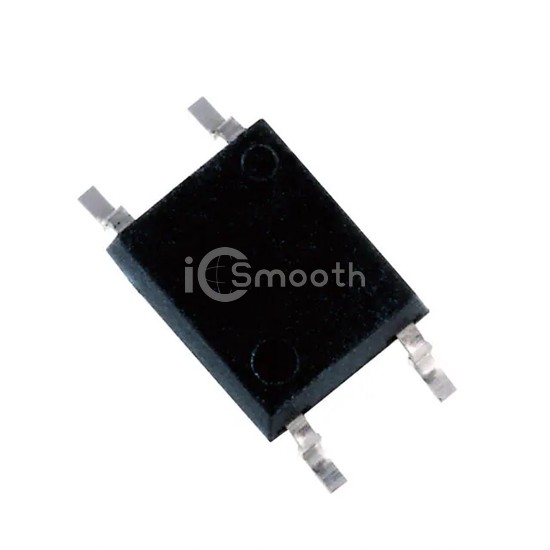

TLX9300(TPL,F

Toshiba Semiconductor and Storage

TR COUPLER; 4-PIN SO6; AECQ; ROH

TLX9300(TPL,F is a Optoisolators - Transistor, Photovoltaic Output manufactured by Toshiba Semiconductor and Storage. TR COUPLER; 4-PIN SO6; AECQ; ROH. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - forward (vf) (typ) 1.25V, package / case 6-SOIC (0.173", 4.40mm Width), 4 Leads.

Datasheet Request a Quote

In Stock: 6,084

Tiered Pricing USD

1+ $3.3400 —

10+ $2.4440 -27%

100+ $1.9108 -43%

500+ $1.6769 -50%

1,000+ $1.6065 -52% BEST

Specifications

18 parameters

Product Status	Active
Number of Channels	1
Voltage - Isolation	3750Vrms
Current Transfer Ratio (Min)	100% @ 5mA
Current Transfer Ratio (Max)	900% @ 5mA
Turn On / Turn Off Time (Typ)	15µs, 50µs
Rise / Fall Time (Typ)	-
Input Type	DC
Output Type	Transistor

Voltage - Output (Max)	40V
Current - Output / Channel	50mA
Voltage - Forward (Vf) (Typ)	1.25V
Current - DC Forward (If) (Max)	30 mA
Vce Saturation (Max)	400mV
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	6-SOIC (0.173", 4.40mm Width), 4 Leads
Supplier Device Package	6-SOP
