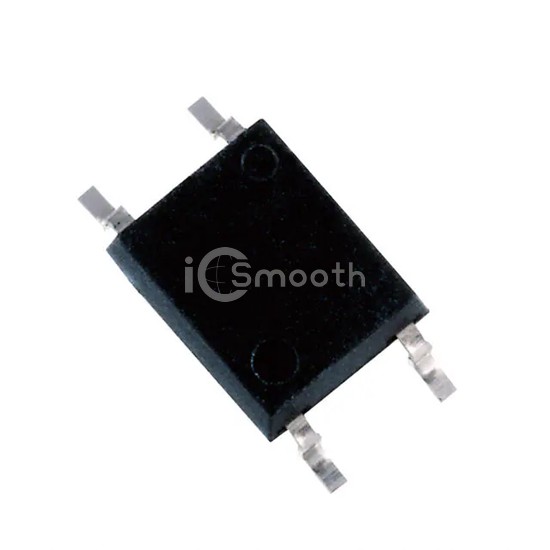

Name: TLX9188(GBTPL,F
Brand: Toshiba Semiconductor and Storage
SKU: TLX9188(GBTPL,F
Price: 3.47 USD
Availability: InStock

REF: TLX9188(GBTPL,F Toshiba Semiconductor and Storage

TLX9188(GBTPL,F

Toshiba Semiconductor and Storage

TR COUPLER; HIGH VCEO; AECQ; ROH

TLX9188(GBTPL,F is a Optoisolators - Transistor, Photovoltaic Output manufactured by Toshiba Semiconductor and Storage. TR COUPLER; HIGH VCEO; AECQ; ROH. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - forward (vf) (typ) 1.27V, package / case 6-SOIC (0.173", 4.40mm Width), 4 Leads.

Datasheet Request a Quote

In Stock: 806

Tiered Pricing USD

1+ $3.4700 —

10+ $2.5420 -27%

100+ $1.9910 -43%

500+ $1.7493 -50%

1,000+ $1.6830 -51% BEST

Specifications

18 parameters

Product Status	Active
Number of Channels	1
Voltage - Isolation	3750Vrms
Current Transfer Ratio (Min)	100% @ 5mA
Current Transfer Ratio (Max)	600% @ 5mA
Turn On / Turn Off Time (Typ)	3µs, 3µs
Rise / Fall Time (Typ)	2µs, 3µs
Input Type	DC
Output Type	Transistor

Voltage - Output (Max)	200V
Current - Output / Channel	50mA
Voltage - Forward (Vf) (Typ)	1.27V
Current - DC Forward (If) (Max)	30 mA
Vce Saturation (Max)	400mV
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	6-SOIC (0.173", 4.40mm Width), 4 Leads
Supplier Device Package	6-SOP
