Name: TLP785(GRH-TP6,F)
Brand: Toshiba Semiconductor and Storage
SKU: TLP785(GRH-TP6,F)
Price: 0.83 USD
Availability: InStock

REF: TLP785(GRH-TP6,F) Toshiba Semiconductor and Storage

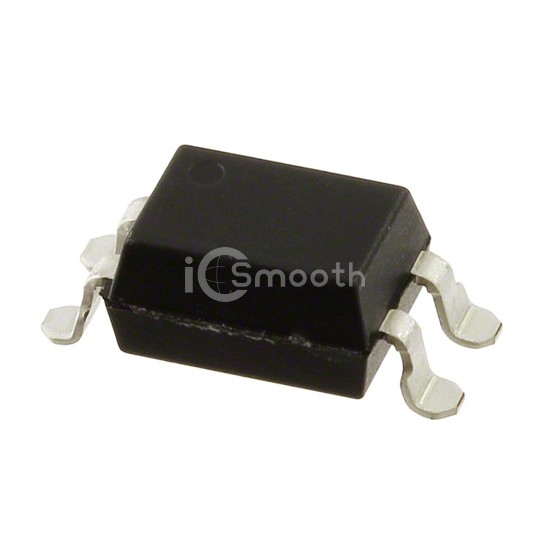

TLP785(GRH-TP6,F)

Toshiba Semiconductor and Storage

OPTOISOLATR 5KV TRANSISTOR 4-SMD

TLP785(GRH-TP6,F) is a Optoisolators - Transistor, Photovoltaic Output manufactured by Toshiba Semiconductor and Storage. OPTOISOLATR 5KV TRANSISTOR 4-SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 110°C, voltage - forward (vf) (typ) 1.15V, package / case 4-SMD, Gull Wing.

Datasheet Request a Quote

In Stock: 11,890

Tiered Pricing USD

1+ $0.8300 —

10+ $0.5790 -30%

100+ $0.4243 -49%

500+ $0.3552 -57%

1,000+ $0.3326 -60% BEST

Specifications

18 parameters

Product Status	Active
Number of Channels	1
Voltage - Isolation	5000Vrms
Current Transfer Ratio (Min)	150% @ 5mA
Current Transfer Ratio (Max)	300% @ 5mA
Turn On / Turn Off Time (Typ)	3µs, 3µs
Rise / Fall Time (Typ)	2µs, 3µs
Input Type	DC
Output Type	Transistor

Voltage - Output (Max)	80V
Current - Output / Channel	50mA
Voltage - Forward (Vf) (Typ)	1.15V
Current - DC Forward (If) (Max)	60 mA
Vce Saturation (Max)	400mV
Operating Temperature	-55°C ~ 110°C
Mounting Type	Surface Mount
Package / Case	4-SMD, Gull Wing
Supplier Device Package	4-SMD
